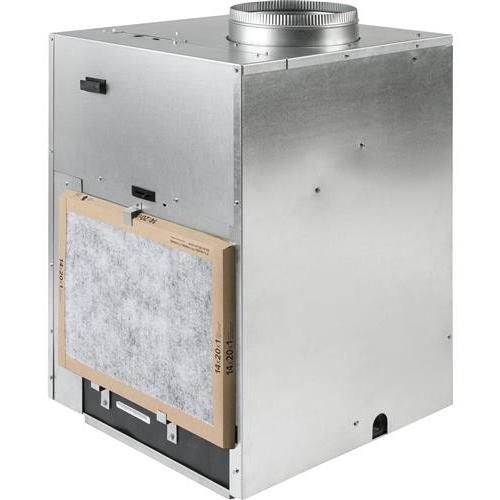

GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 1

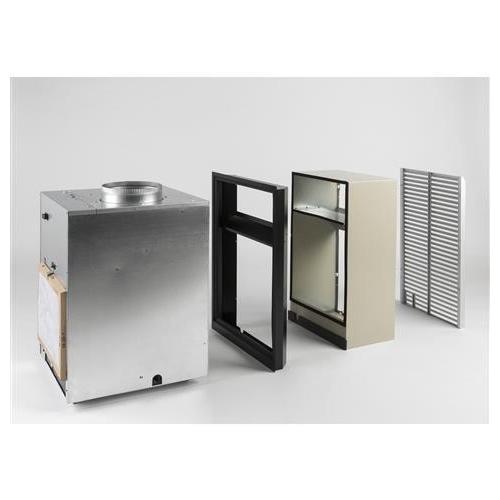

GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 2

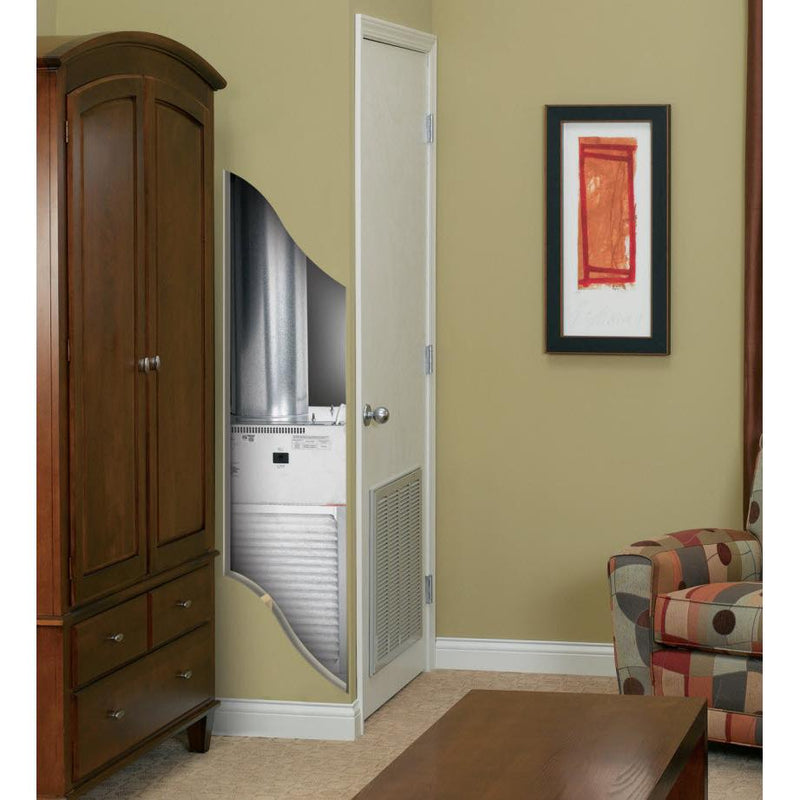

GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 3

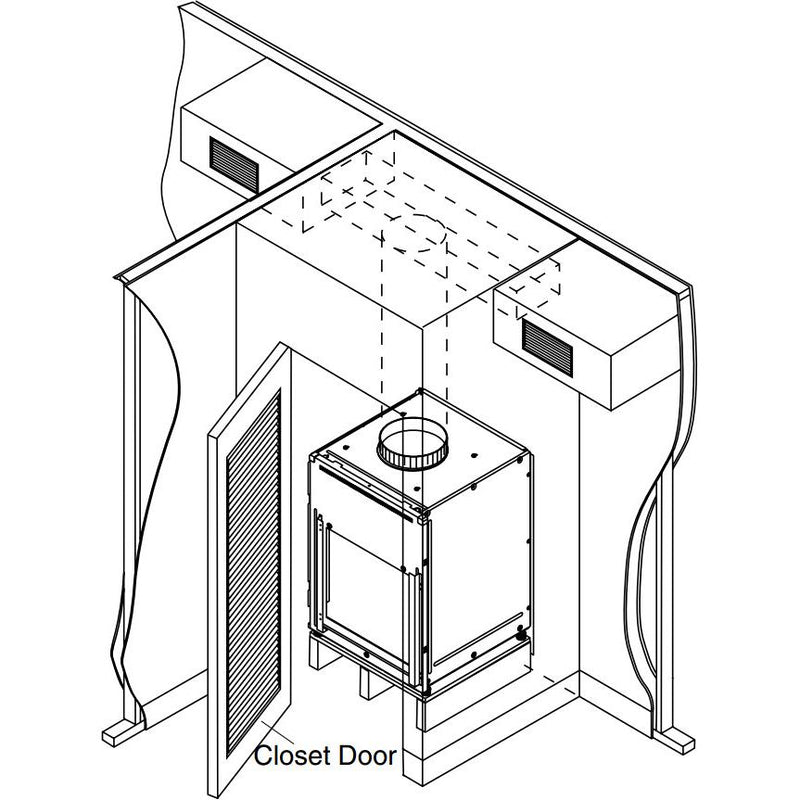

GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 4

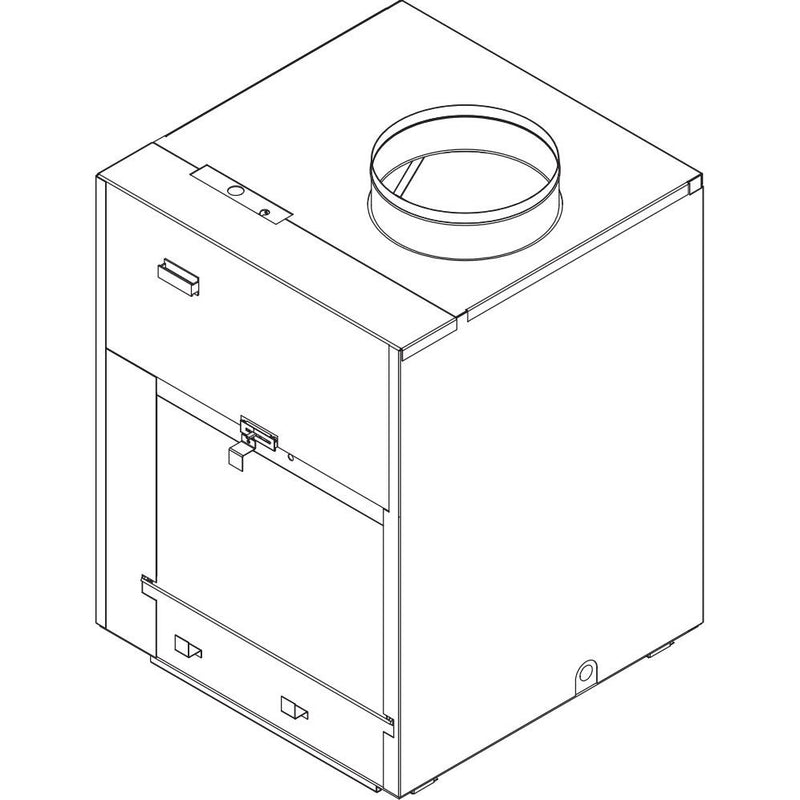

GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 5

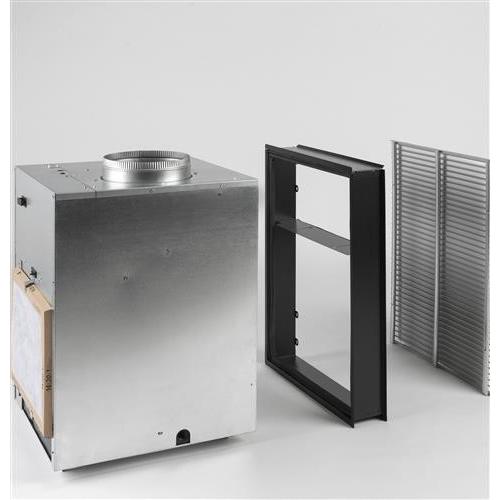

GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 6

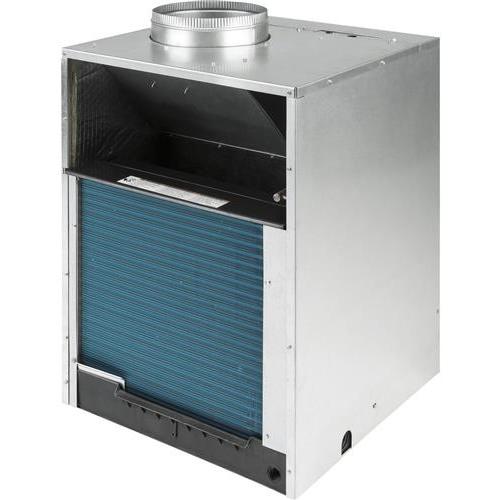

GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 7
Roll over image to zoom in Click on image to zoom
GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 1
GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 2
GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 3
GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 4
GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 5
GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 6
GE Air Conditioners and Heat Pumps Central AZ90E12D5C IMAGE 7

GE Air Conditioners and Heat Pumps Central AZ90E12D5C

GESKU: AZ90E12D5C
GE Zoneline® Single package vertical air conditioner that offers cooling and electric heat. Featuring 3 cooling fan speed selections, temperature... GE Zoneline® Single package vertical air conditioner that offers cooling and electric heat. Featuring 3 cooling fan speed selections, temperature limiting and auto power recovery. The installation requires a wall plenum, an exterior grille, a chassis including case, a power connection kit, a remote thermostat, filter and a return air grille, and ductwork (sold separately). View more
Features Specifications Documents
Features
CORROSION RESISTANT
Extends life of the unit in sea coast areas/corrosive environments
VERTICAL DESIGN
Optimizes usable floor space
RELIABLE & QUIET
Every component is engineered to provide exceptional performance
Specifications
General
Series Name
Zoneline®
Installation Type
Floor
Type
Cooling and Heating
Heating Power
8500 BTU
Cooling Power
12,200 BTU
Fan Speed
3 settings
Features
Controls
Digital
Wi-Fi
No
Energy Star Certified
No
Additional Information
• Unit is packaged with the case and the front panel in place (filter not included)
• Installation requires: wall plenum, exterior grille, chassis including case, power connection kit, remote thermostat, filter and a return air grille (sold separately)
• Also requires ductwork and supplies
• Cooling EER (BTUH / Watt): 10.4
• CFM Indoor Fan: 420/450
• Dehumidification (pts./hr.): 3.1
• Min. Circuit Amps: 30
• Corrosion treated
• Central Desk Control Compatibility
• Solid state thermostat
• Automatic indoor frost control
• Smart Fan cycle control
• Auto power recovery
• Automatic emergency heat
• DC indoor and outdoor motors
• Weather protected electrical components
Electrical Information
Voltage
230/208 V
Dimensions
Width
23.13 inch(es) / 58.74 cm
Height
32.25 inch(es) / 81.92 cm
Depth
23.13 inch(es) / 58.74 cm
Weight
124.01 lb(s) / 56.25 kg
Shipping Dimensions
Weight
135.01 lb(s) / 61.24 kg
Warranty
Warranty
• Limited 1-year warranty for parts and labor on entire appliance
• Limited 5-year warranty on sealed refrigerating system
• See written warranty for full details
Documents
Owners Manual
Product Specifications
Dimensions Sheet
