Features

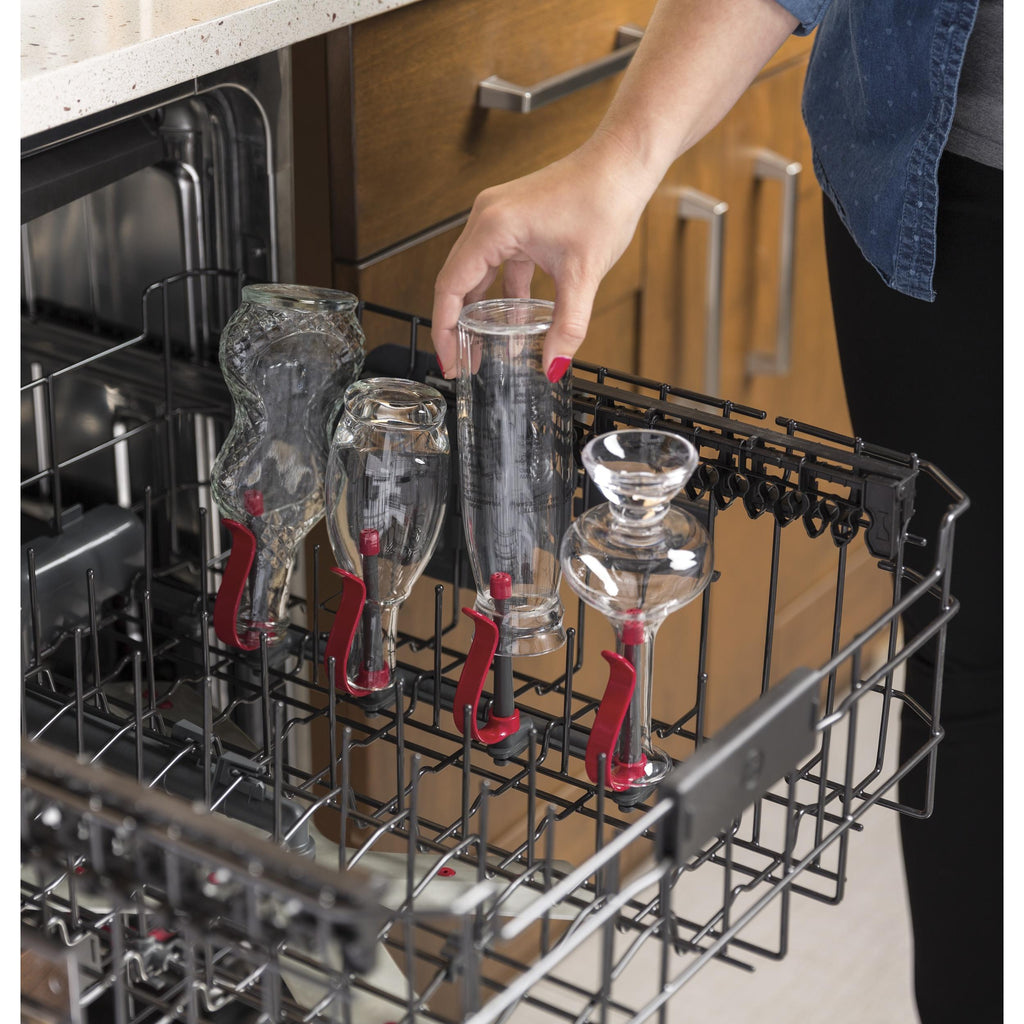

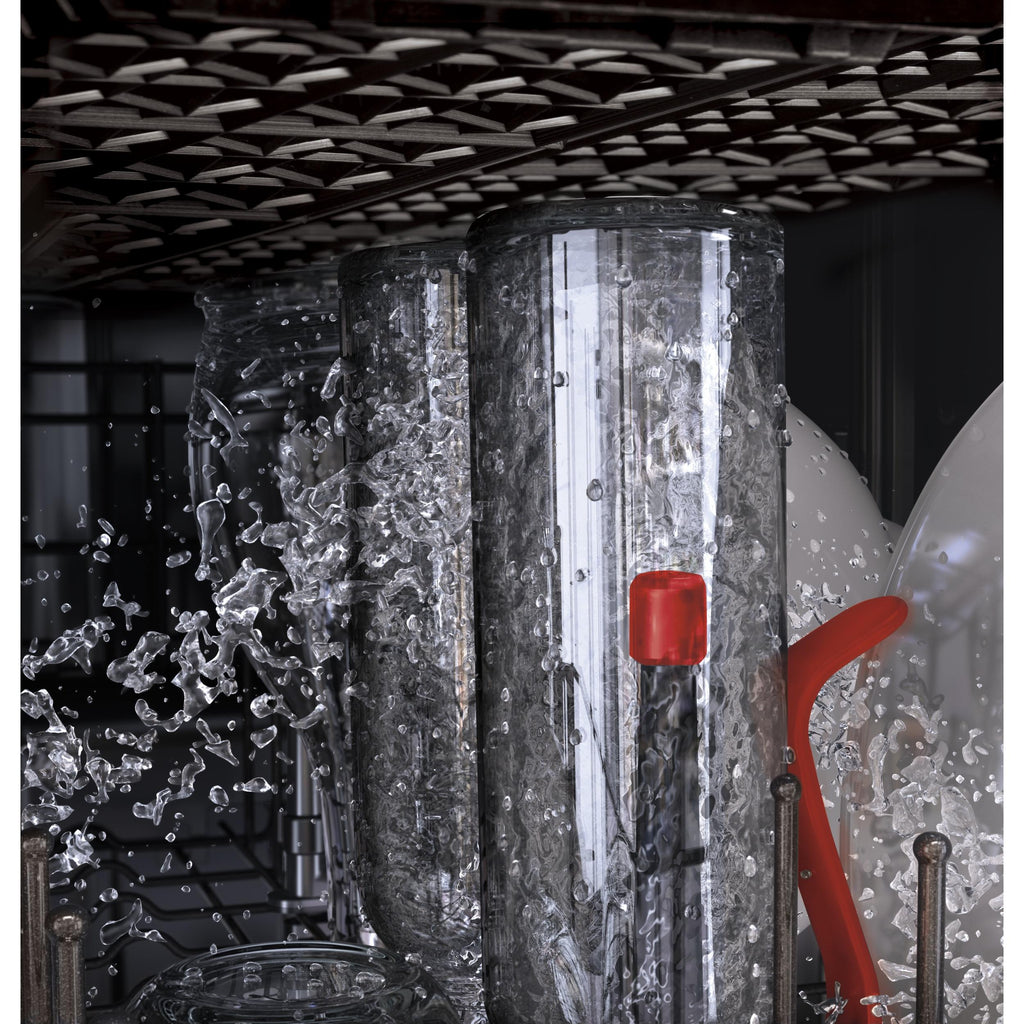

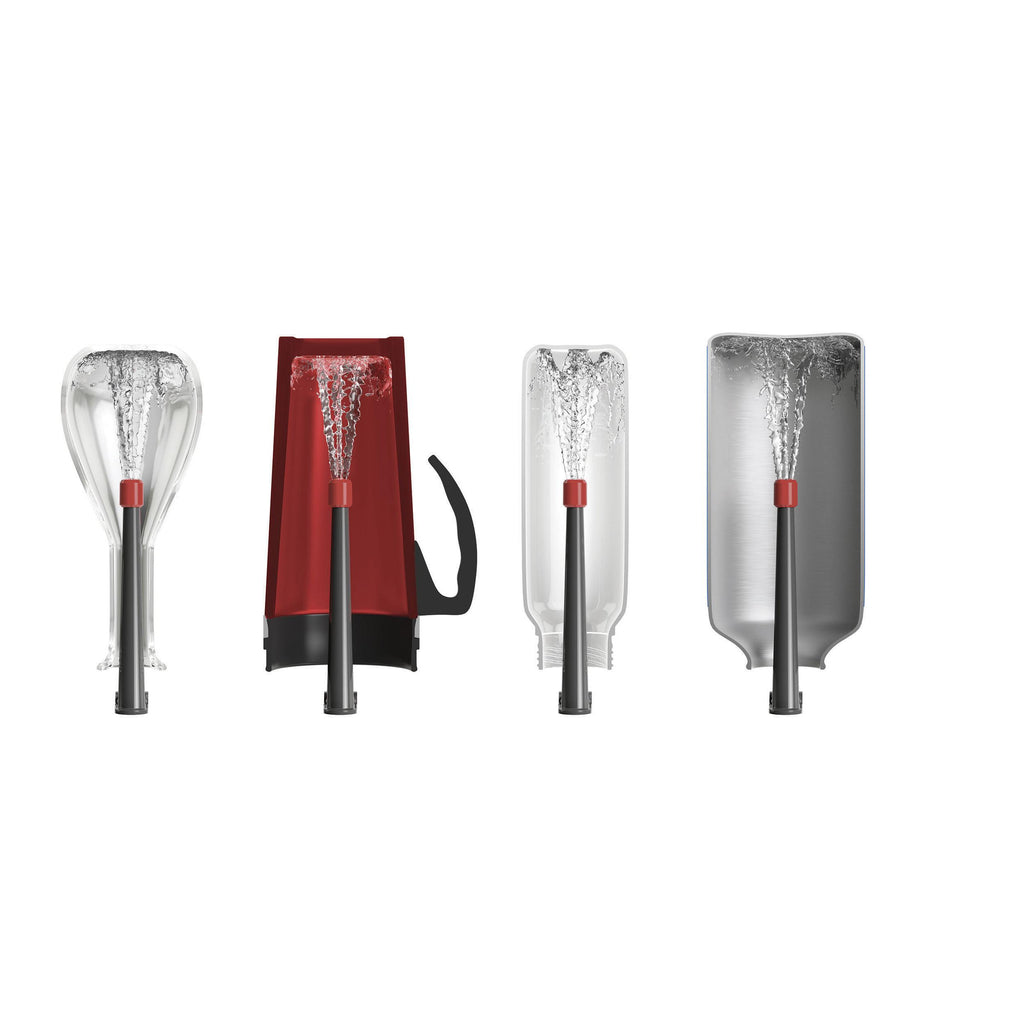

BOTTLE JETS
Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean.

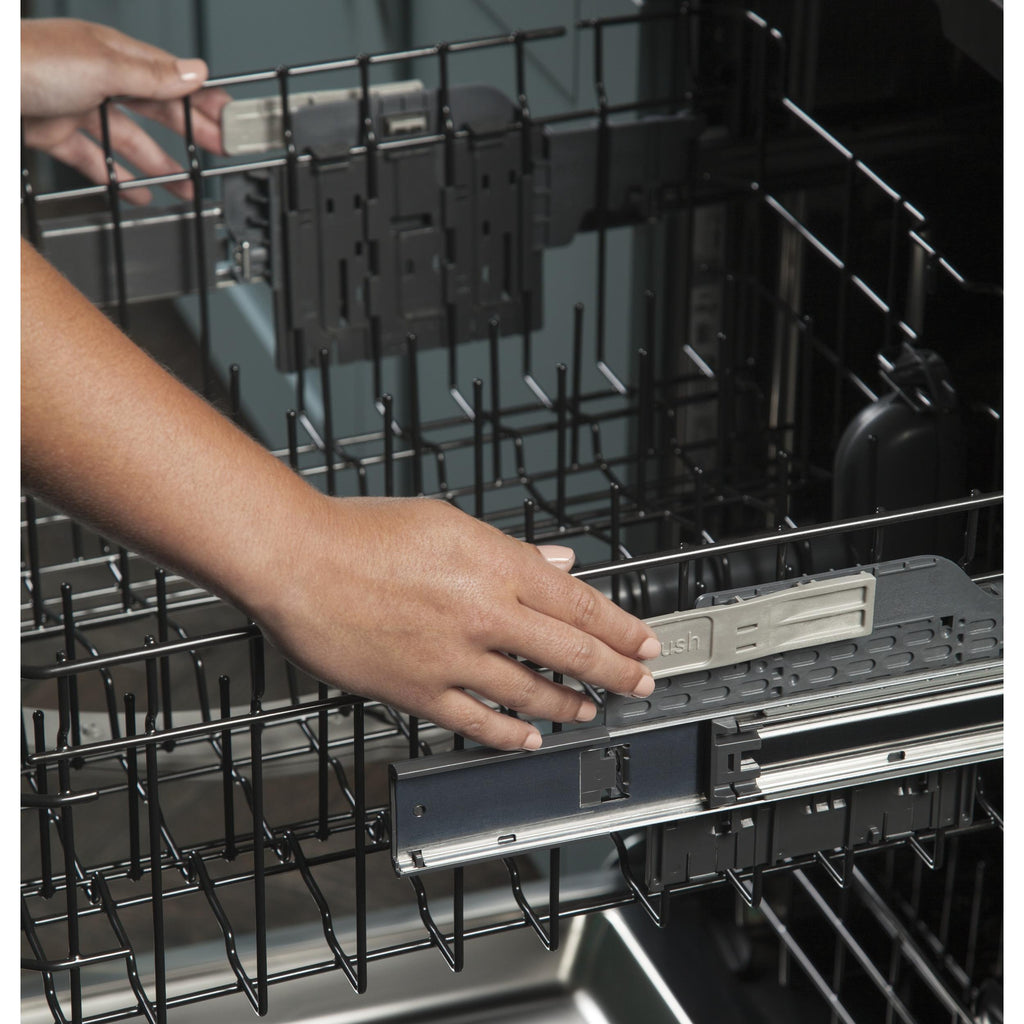

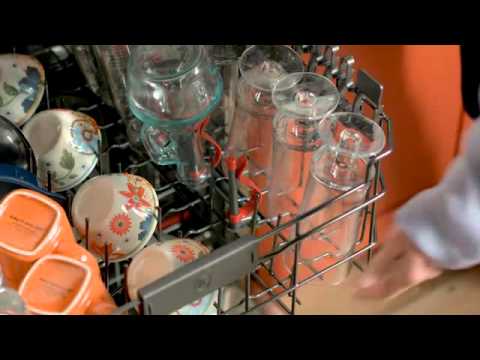

EASY TOUCH ADJUSTABLE UPPER RACK WITH 2 STEM SAFE SHELVES

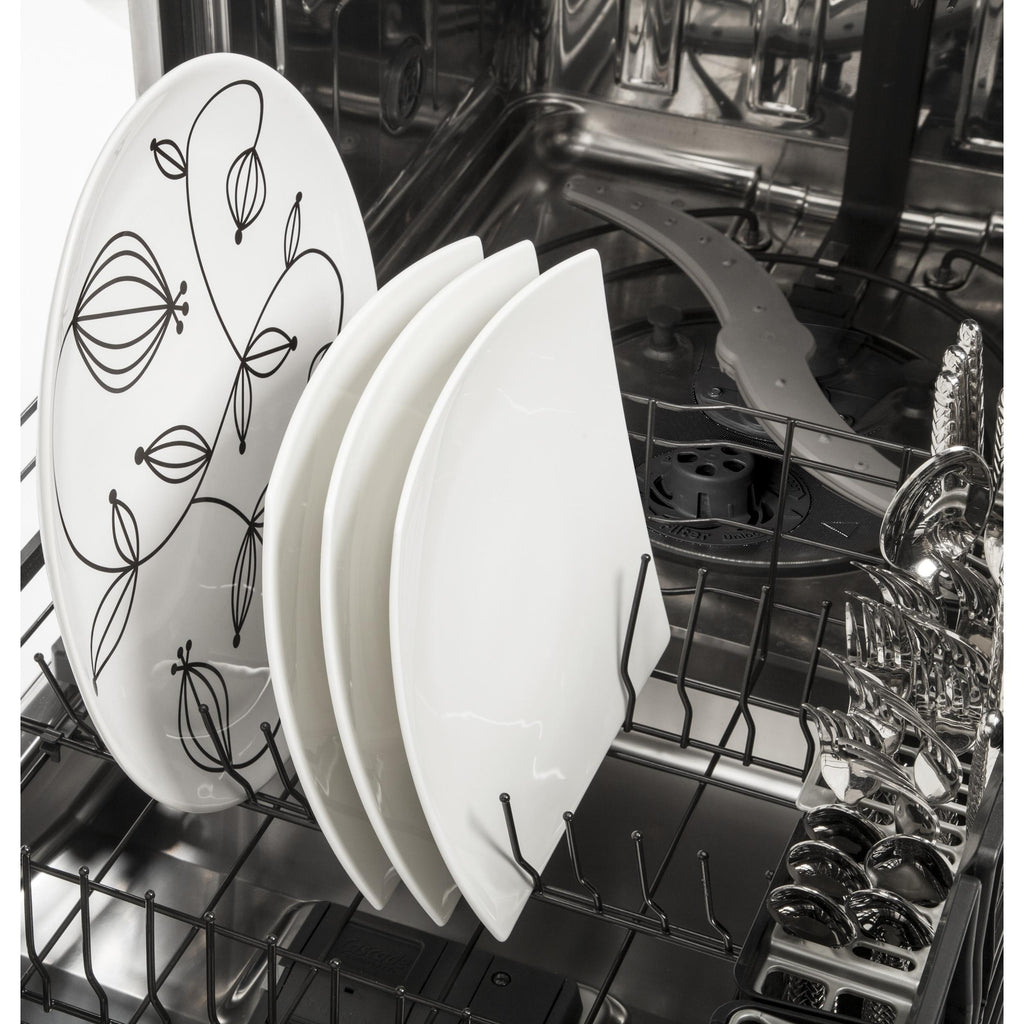

Quickly adjust the upper rack 2 inches up or down to accommodate tall glassware and 10 ½” plates with plenty of room in the bottom rack for large platters and cookie sheets.

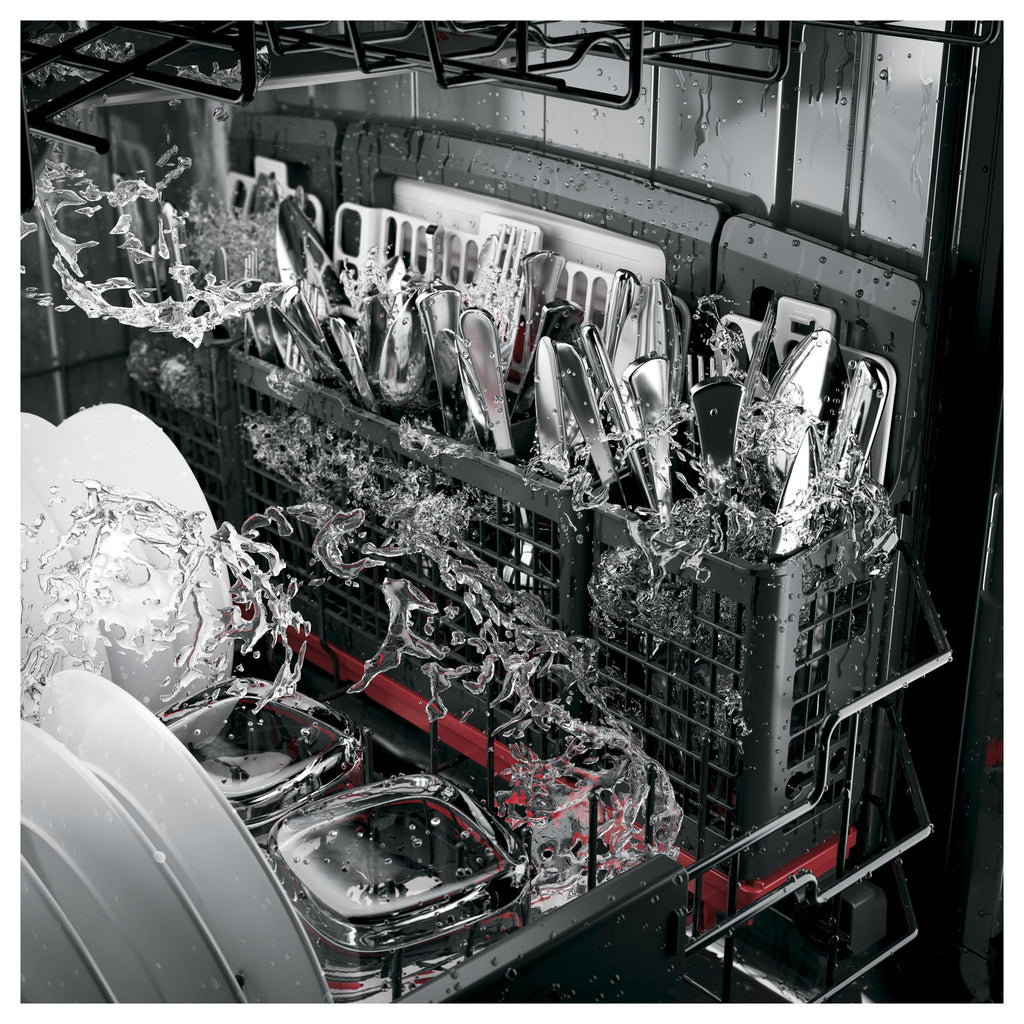

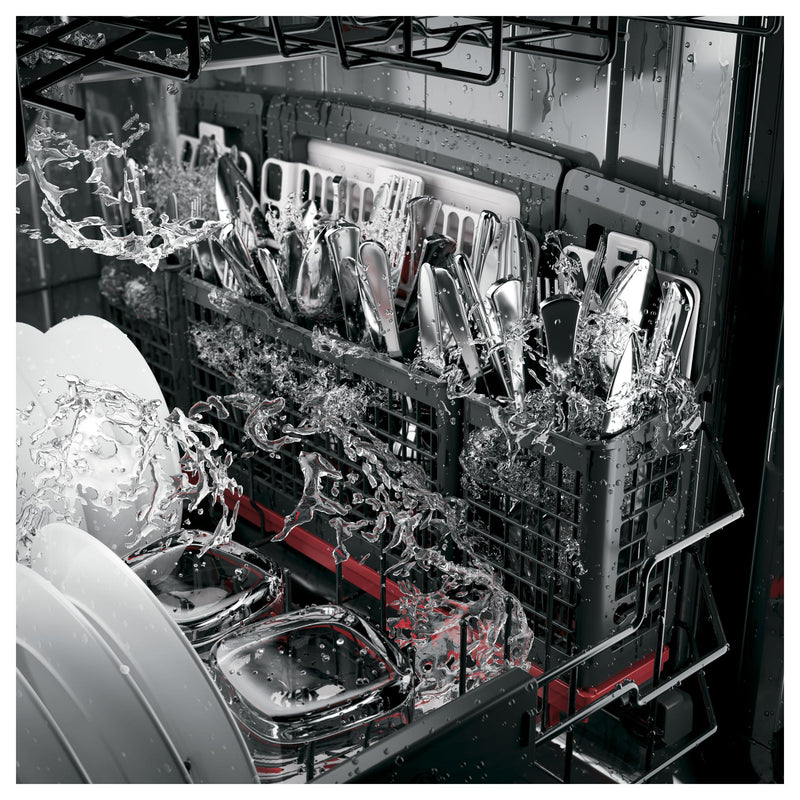

DEEP CLEAN SILVERWARE JETS
A system of deep clean silverware jets blasts the silverware basket from the bottom up, removing all stuck-on foods and providing sparkling results.

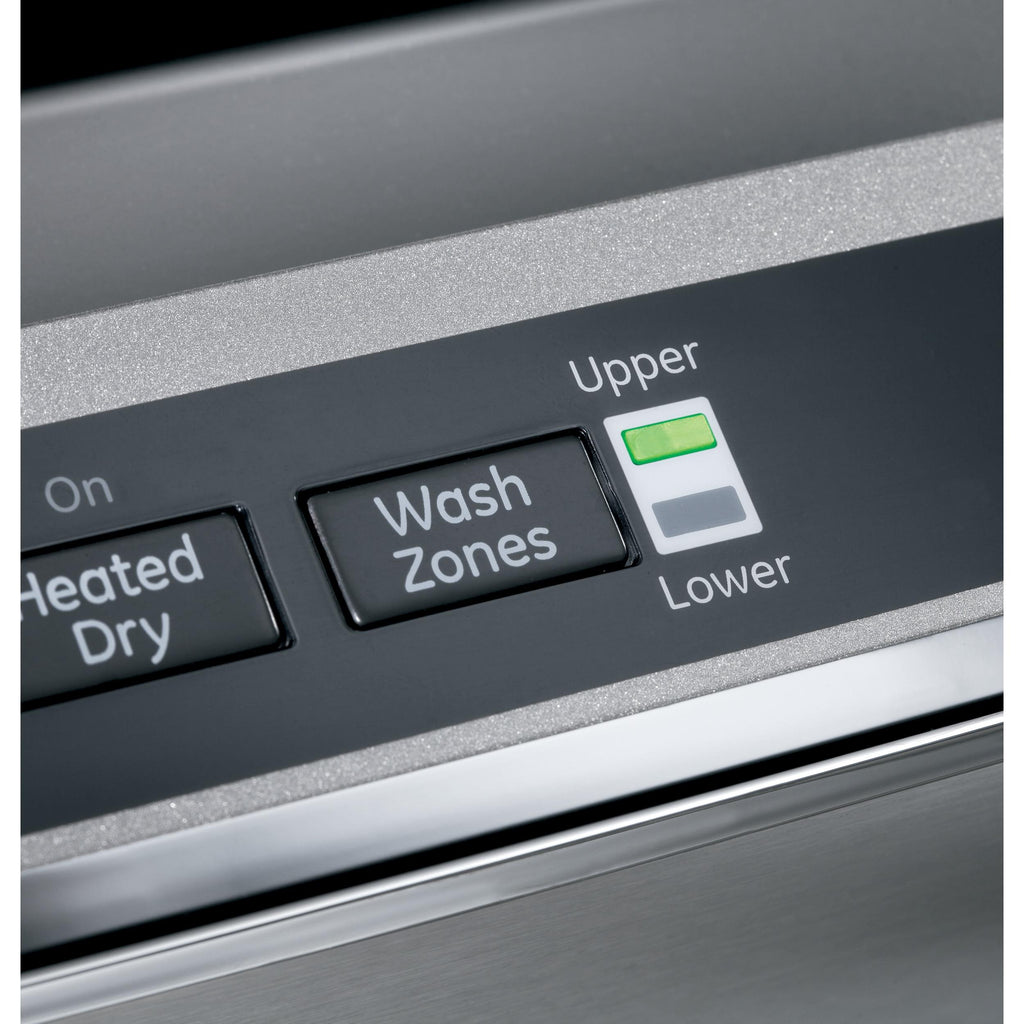

WASH ZONES
Wash a true half-load in either the upper or lower rack without sacrificing cycles and options available on a full wash.

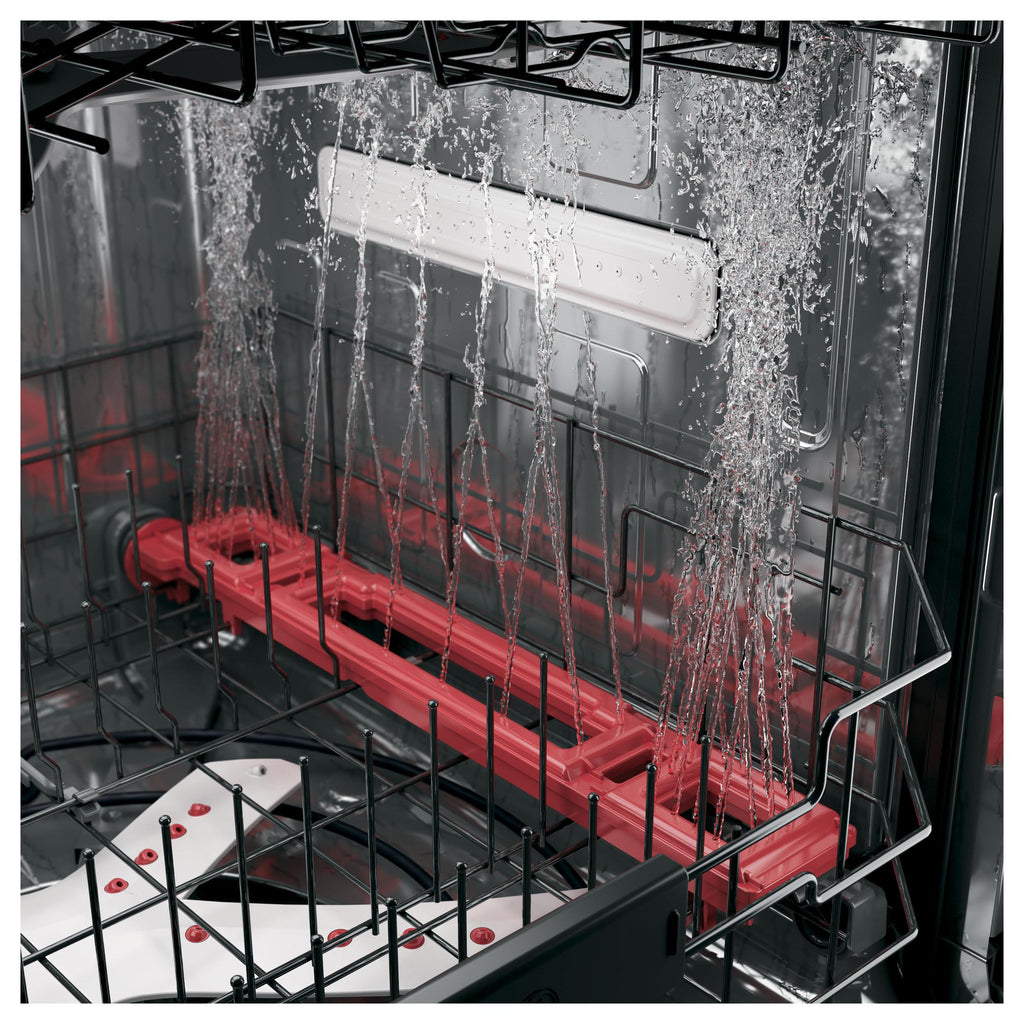

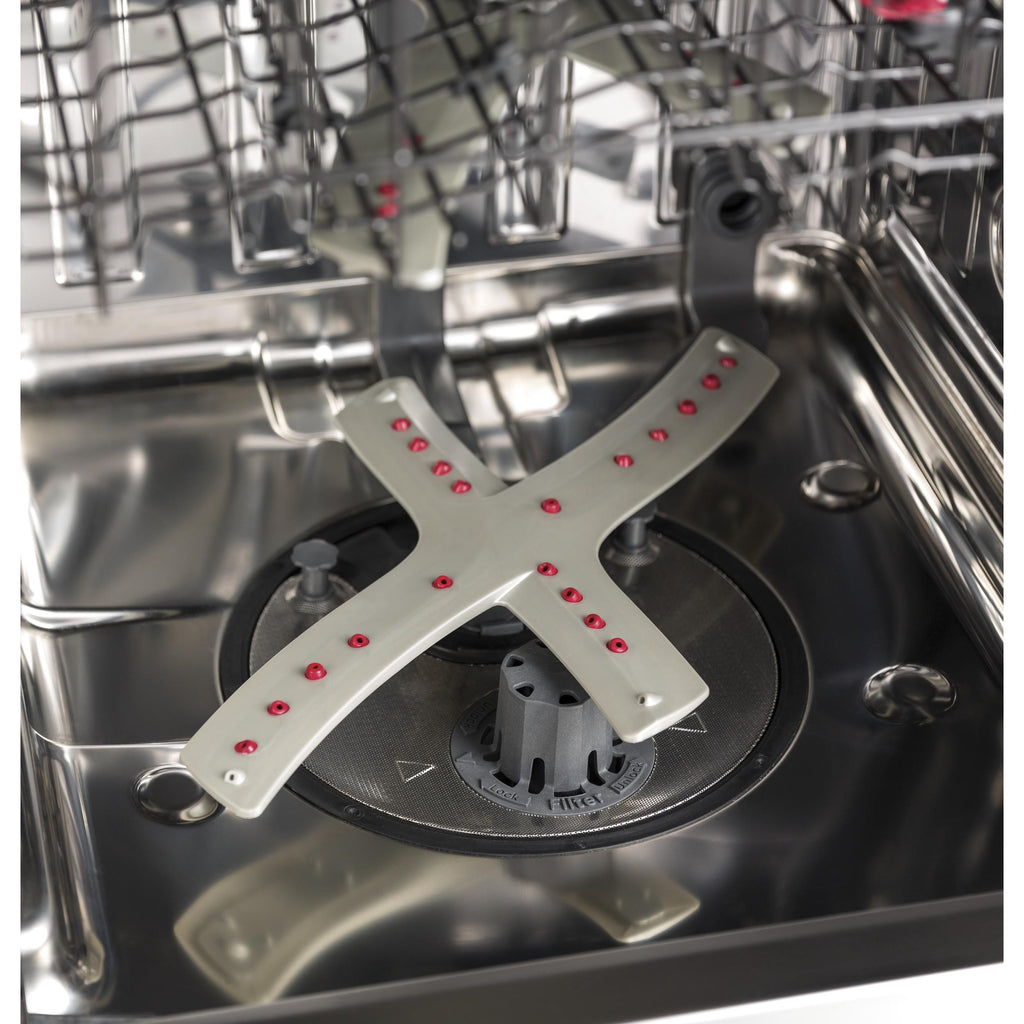

REVERSING QUAD BLADE WASH ARM
Dishes come out impressively clean thanks to this revolutionary lower wash arm, with 25 spray jets reversing direction to hit items from every angle.
ENERGY STAR CERTIFIED
Certified to exceed Energy Star® guidelines for energy efficiency
Additional Features

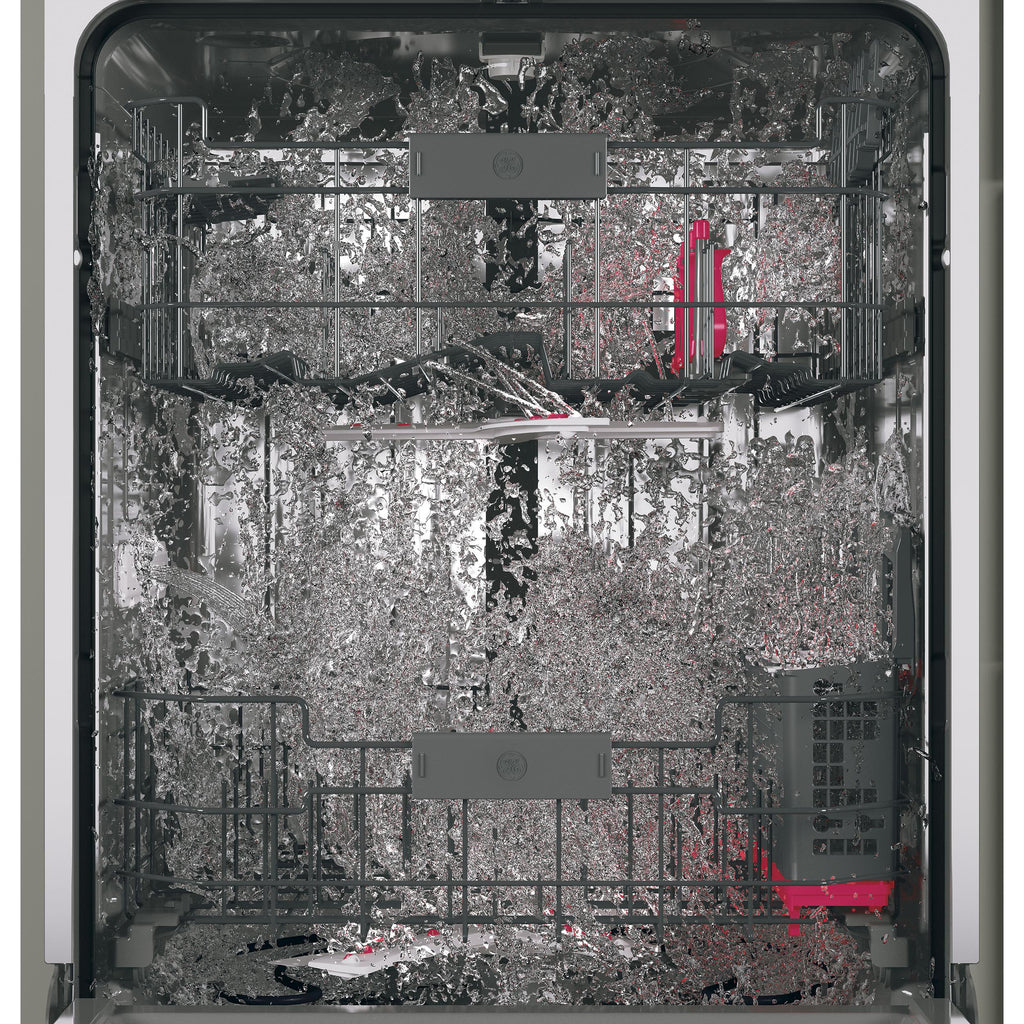

ADVANCED WASH SYSTEM WITH MORE THAN 140 CLEANING JETS
Achieve the ultimate clean from an industry-leading number of jets that deliver complete washing coverage to every corner of the dishwasher
HIDDEN VENT WITH FAN DRY
Dishes dry quickly and efficiently with a fan that extracts moisture from the interior.

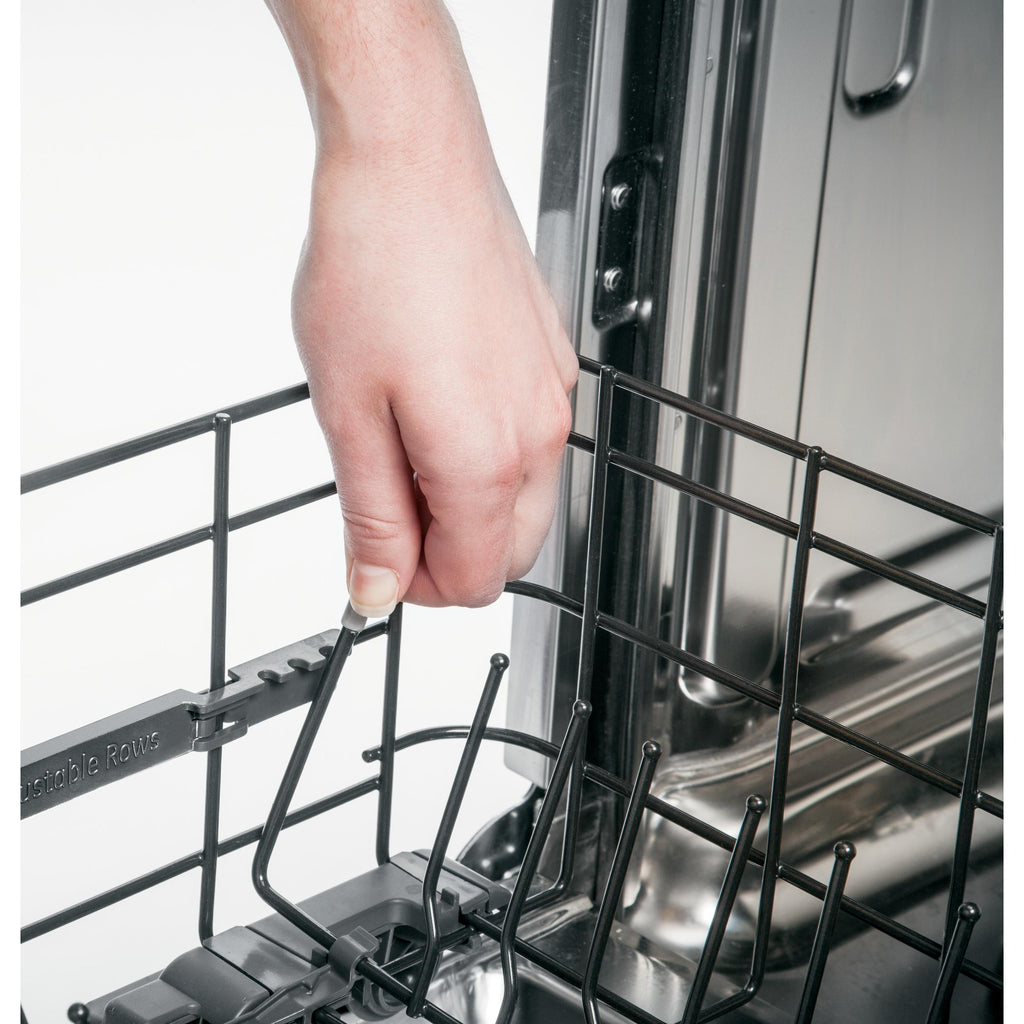

Full extension smooth glide upper rack with fold-down tines
Easily fit large or odd-shaped items in the upper rack
Specifications
General
Series Name
800 series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16

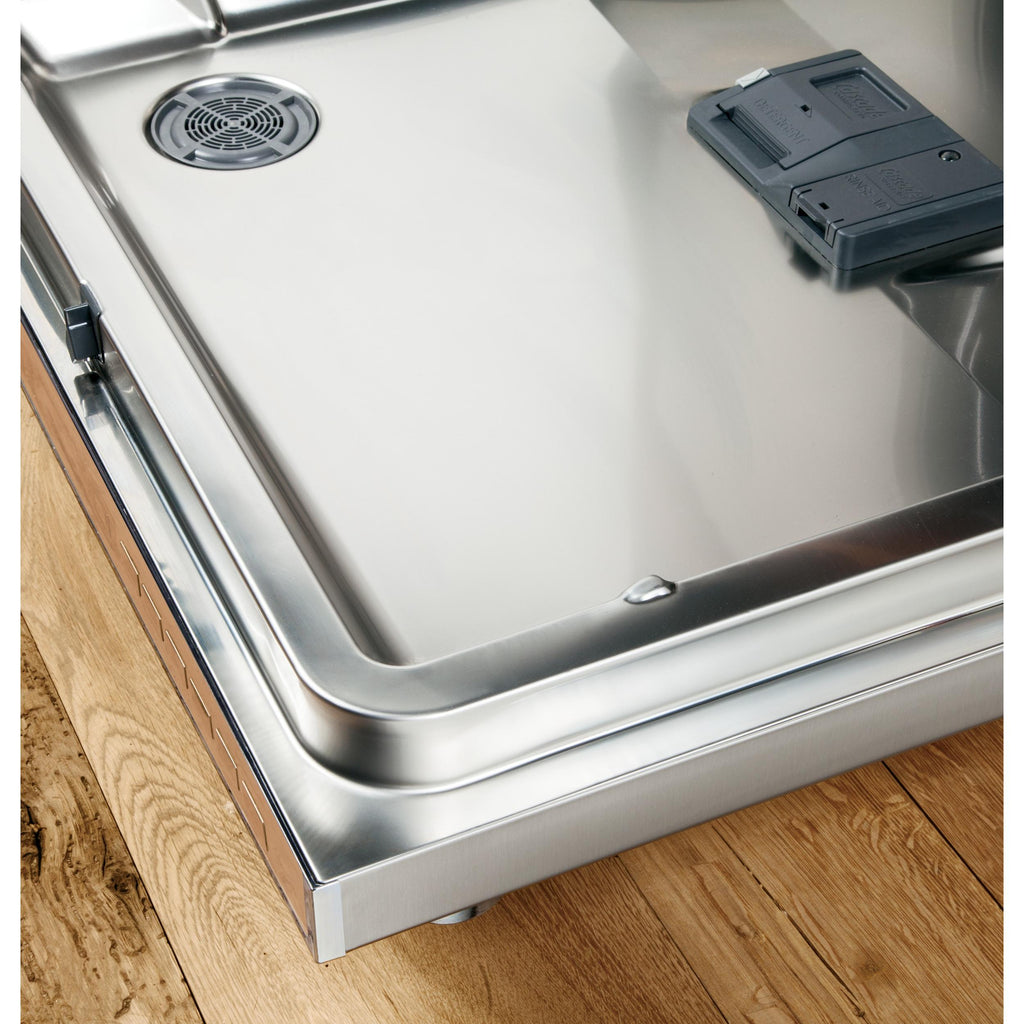

Tub Material
Stainless Steel
Silence Rating
45 dB
Cycle Information
Number of Cycles
4
Wash Cycles
• Auto sense
• Heavy wash
• Light wash
• Normal wash
• Heavy wash
• Light wash
• Normal wash
Options
• Bottle jets
• Child lock
• Delay start 1-12 Hr.
• Heated dry
• Sani (NSF Certified)
• Start/Reset
• Steam prewash
• Wash TempBoost
• Wash zone lower only
• Wash zone upper only
• Child lock
• Delay start 1-12 Hr.
• Heated dry
• Sani (NSF Certified)
• Start/Reset
• Steam prewash
• Wash TempBoost
• Wash zone lower only
• Wash zone upper only
Features
Delay Start Information
1-12 hours
Delay Start
Yes
3rd Rack System
No
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• 1 "Clean" light, 1 "Sanitized" light cycle progress indicators

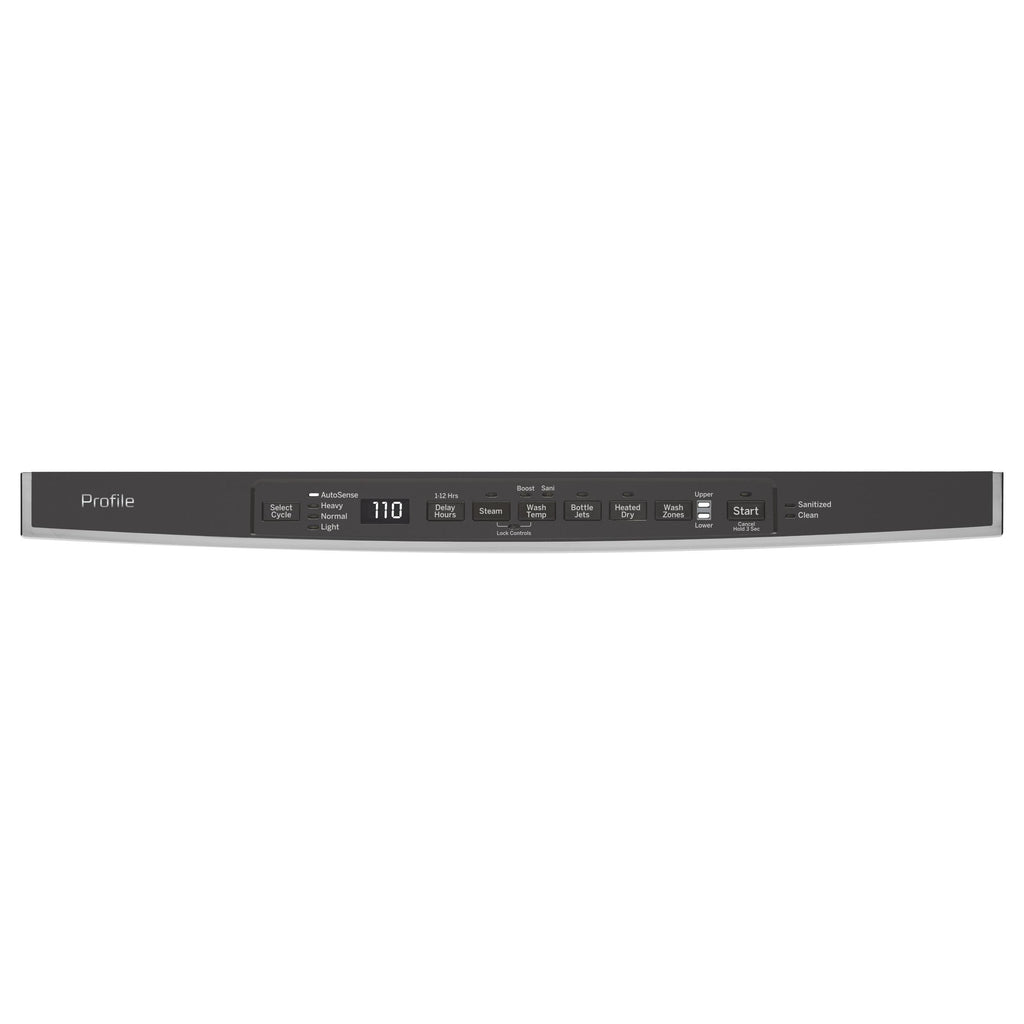

• 3 digit display cycle countdown with bi-color LED status light on door
• Audible end-of-cycle signal
• Last cycle memory
• 3-level wash system
• 140+ spray jet wash system
• Automatic HotStart
• Automatic temperature control
• Bottle jets
• Deep clean silverware jets
• Drain pump
• Dual pumps and motors
• Piranha™ hard food disposer with removable filter
• Quad blade middle wash arm
• Reversing quad blade lower wash arm
• Side jets
• 100% filtration with piranha hard food disposer and removable filter
• 10 options
• Clean sensor
• Upper rack: 1 rack handle, 1/2 fixed tines, 1/2 fold down tines, 2 stem safe shelves, ball-tip tines, premium height adjustable
• Power cord - not included
• Lower rack: 1 rack handle, ball-tip tines, multi-position fold down tines
• 3 digit display cycle countdown with bi-color LED status light on door
• Audible end-of-cycle signal
• Last cycle memory
• 3-level wash system
• 140+ spray jet wash system
• Automatic HotStart
• Automatic temperature control
• Bottle jets
• Deep clean silverware jets
• Drain pump
• Dual pumps and motors
• Piranha™ hard food disposer with removable filter
• Quad blade middle wash arm
• Reversing quad blade lower wash arm
• Side jets
• 100% filtration with piranha hard food disposer and removable filter
• 10 options
• Clean sensor
• Upper rack: 1 rack handle, 1/2 fixed tines, 1/2 fold down tines, 2 stem safe shelves, ball-tip tines, premium height adjustable
• Power cord - not included
• Lower rack: 1 rack handle, ball-tip tines, multi-position fold down tines
Electrical Information
Information
• 120 V
• 7,2 A
• 60 Hz
• 7,2 A
• 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
ADA Compliant
No
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.33 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Weight
105.01 lb(s) / 47.63 kg
Additional Dimensions
• Overall height: 34 in
• Height with legs retracted - minimum height : 33 3/8 in
• Height with legs extended - maximum height: 34 5/8 in
• Overall depth: 24 in
• Overall width: 23 3/4 in
• For more information please refer to dimension guide
• Height with legs retracted - minimum height : 33 3/8 in
• Height with legs extended - maximum height: 34 5/8 in
• Overall depth: 24 in
• Overall width: 23 3/4 in
• For more information please refer to dimension guide
Shipping Dimensions
Weight
117.99 lb(s) / 53.52 kg
Warranty
Warranty
Limited 1-year parts and labor
UPC
UPC#
84691817420
