Features

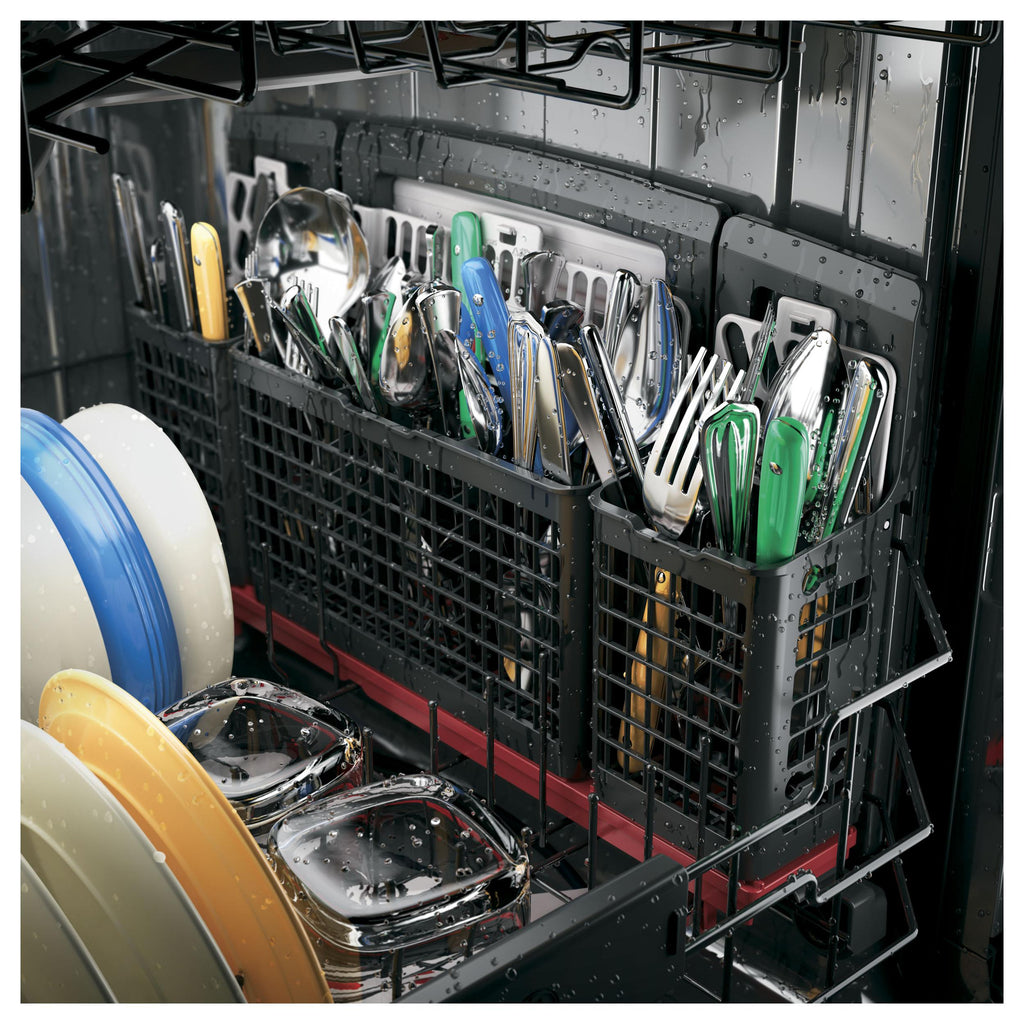

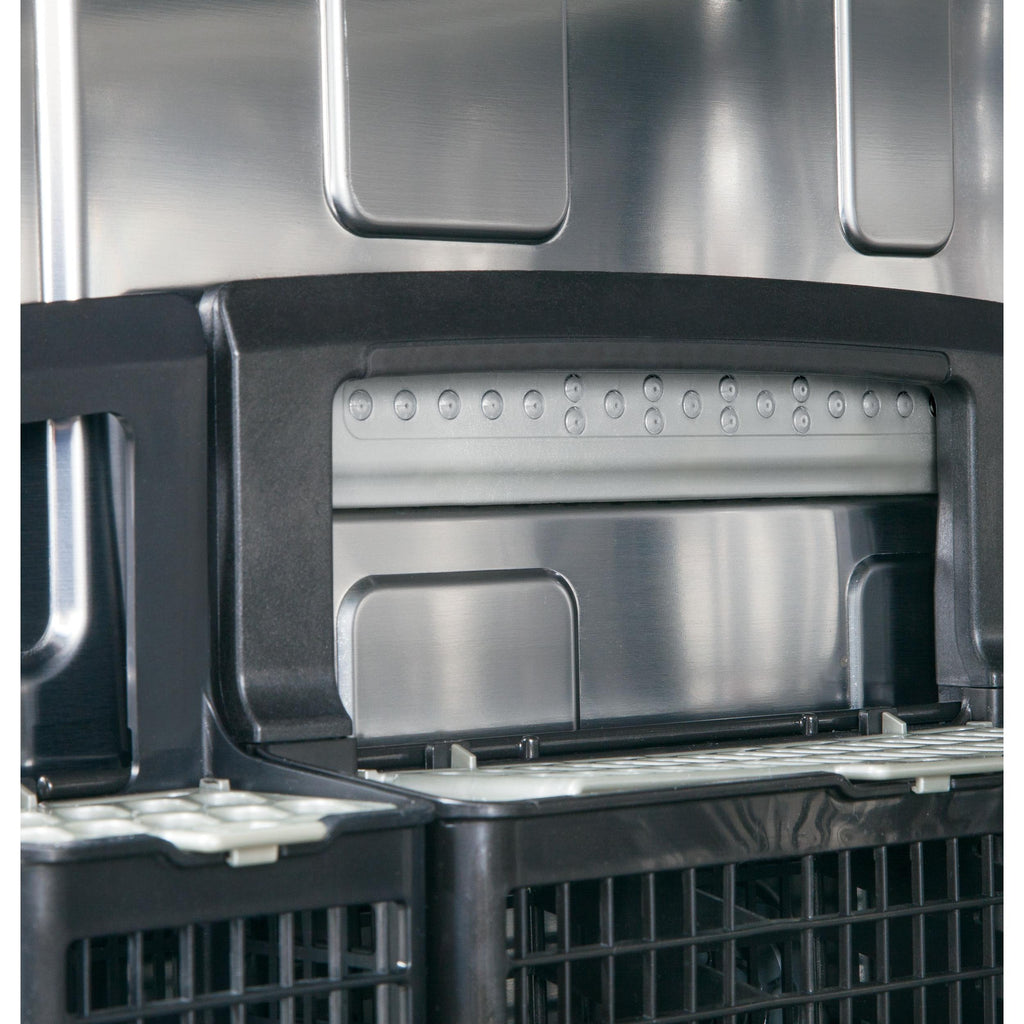

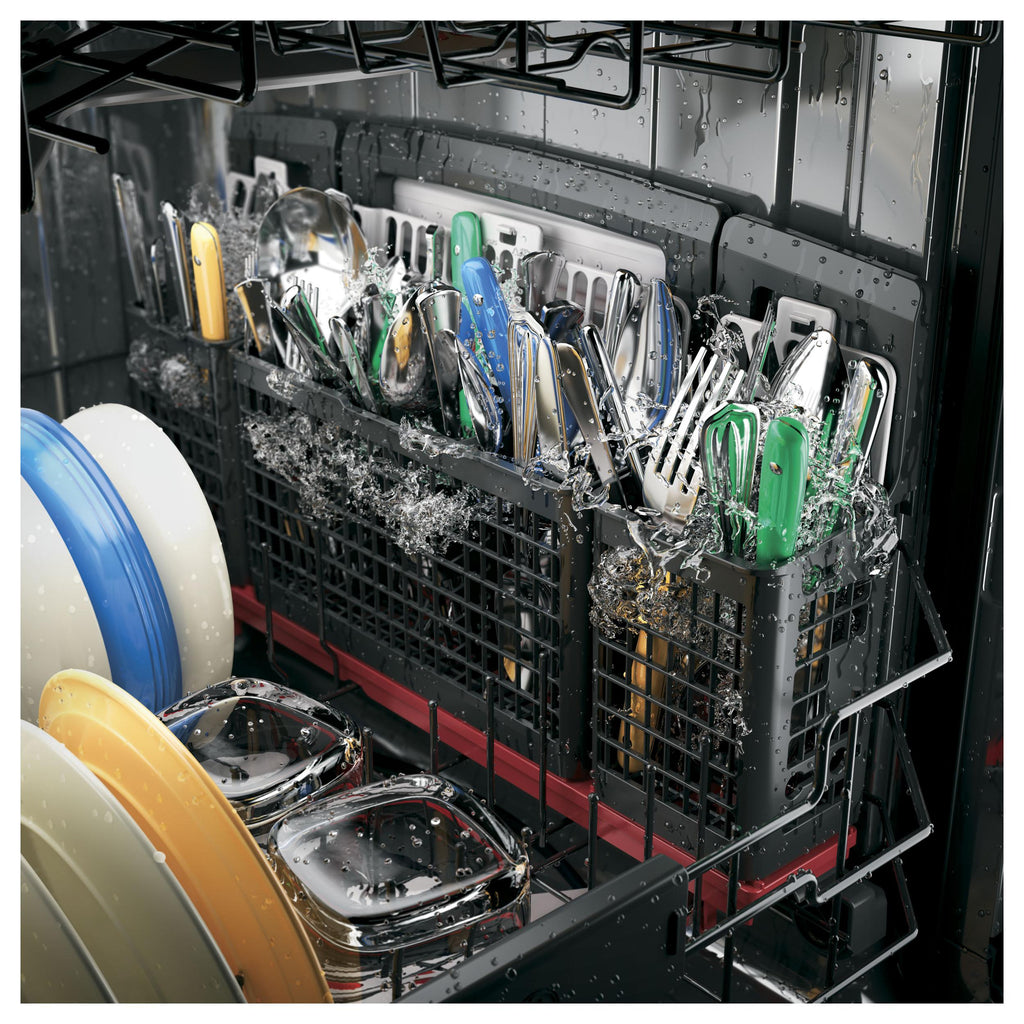

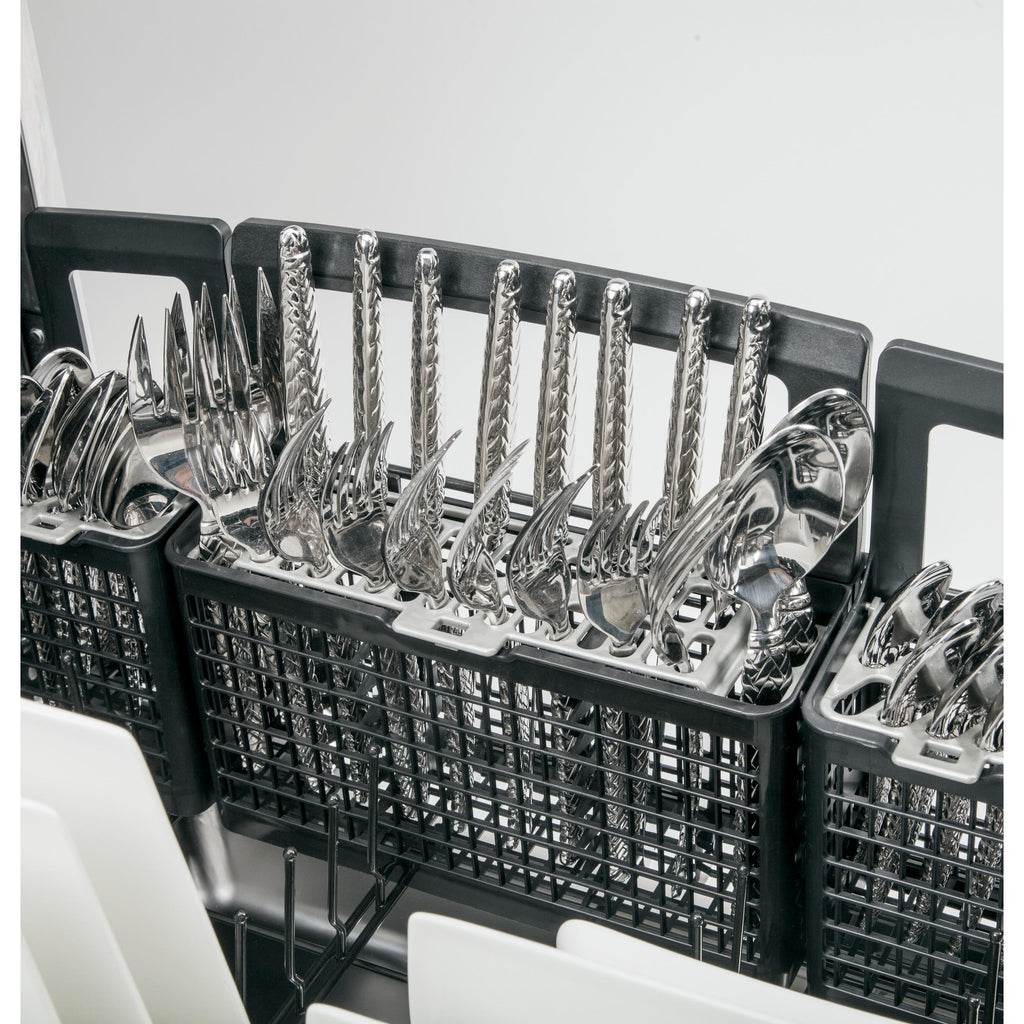

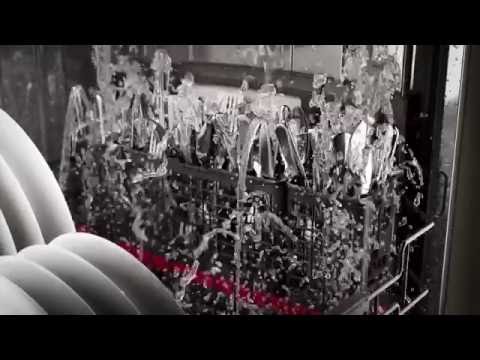

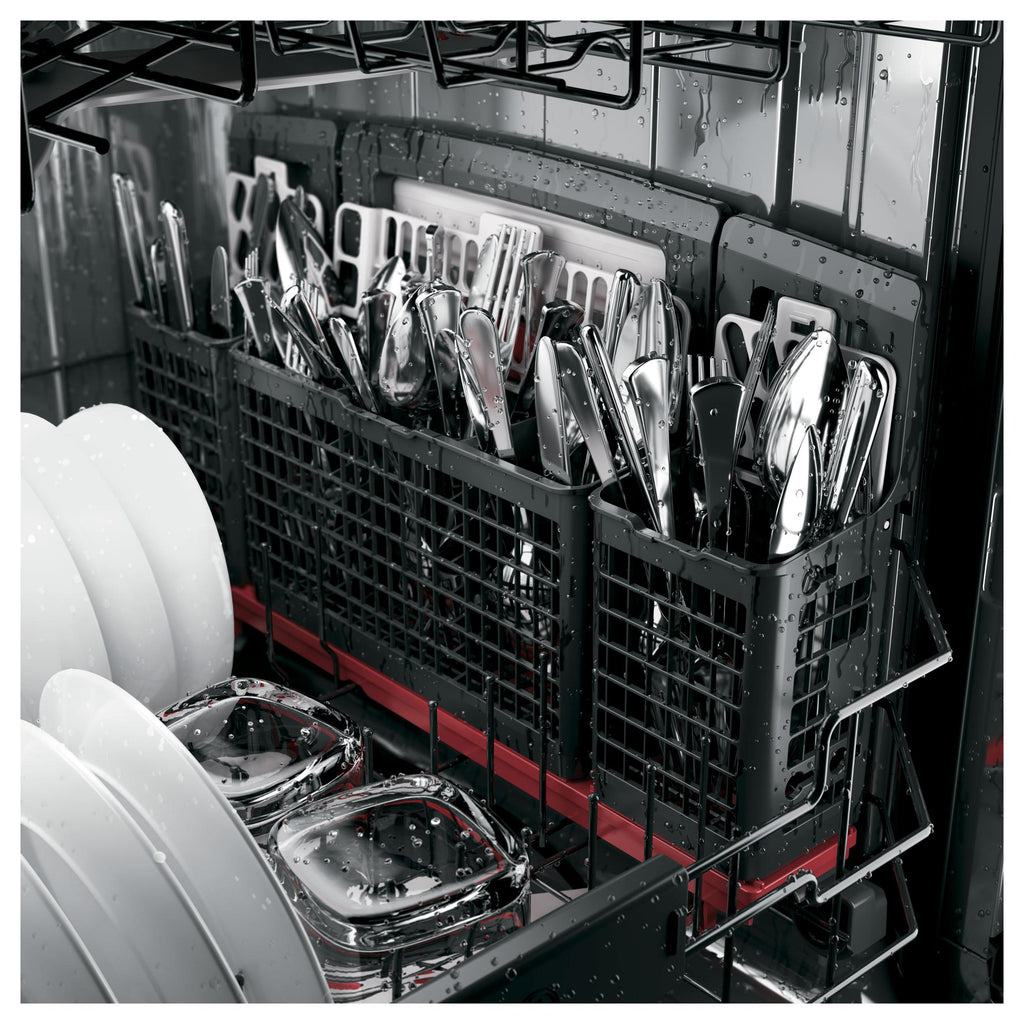

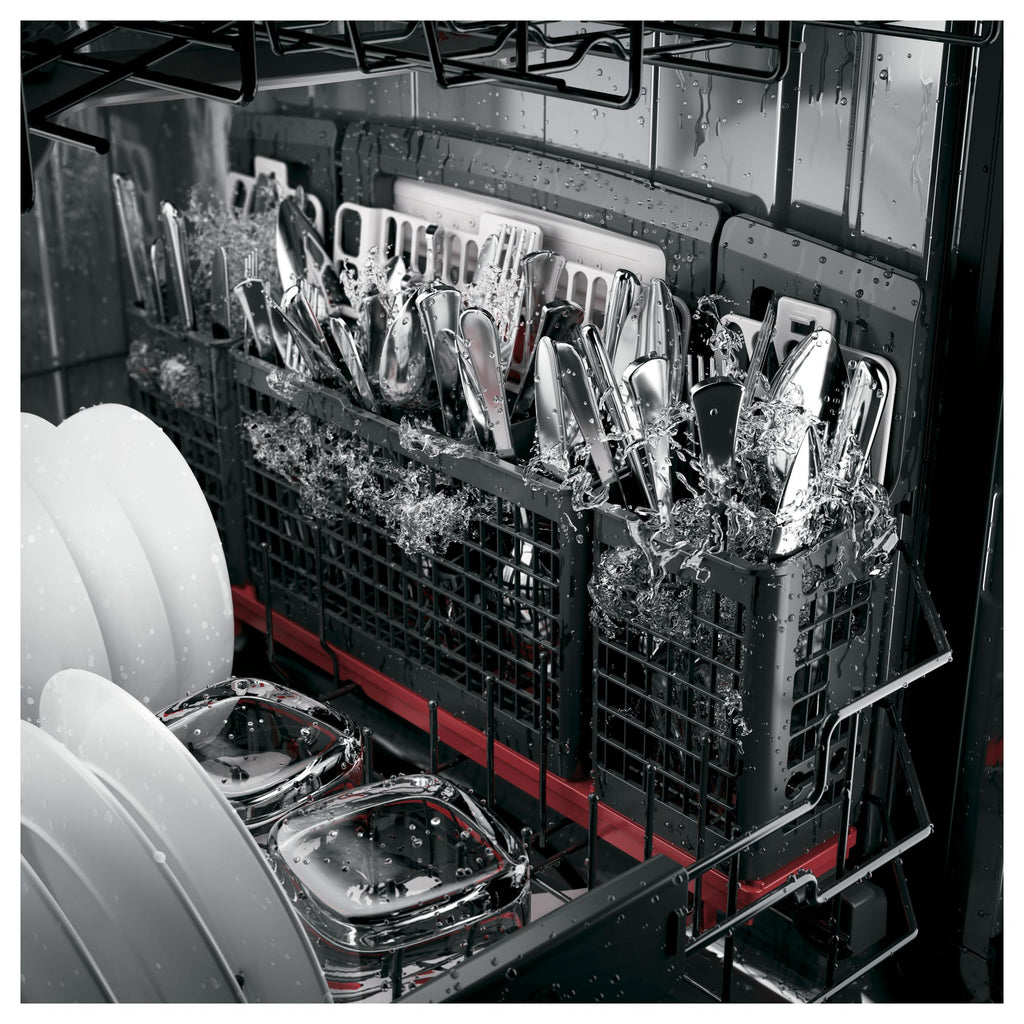

DEEP CLEAN SILVERWARE JETS
A system of deep clean silverware jets blasts the silverware basket from the bottom up, removing all stuck-on foods and providing sparkling results.

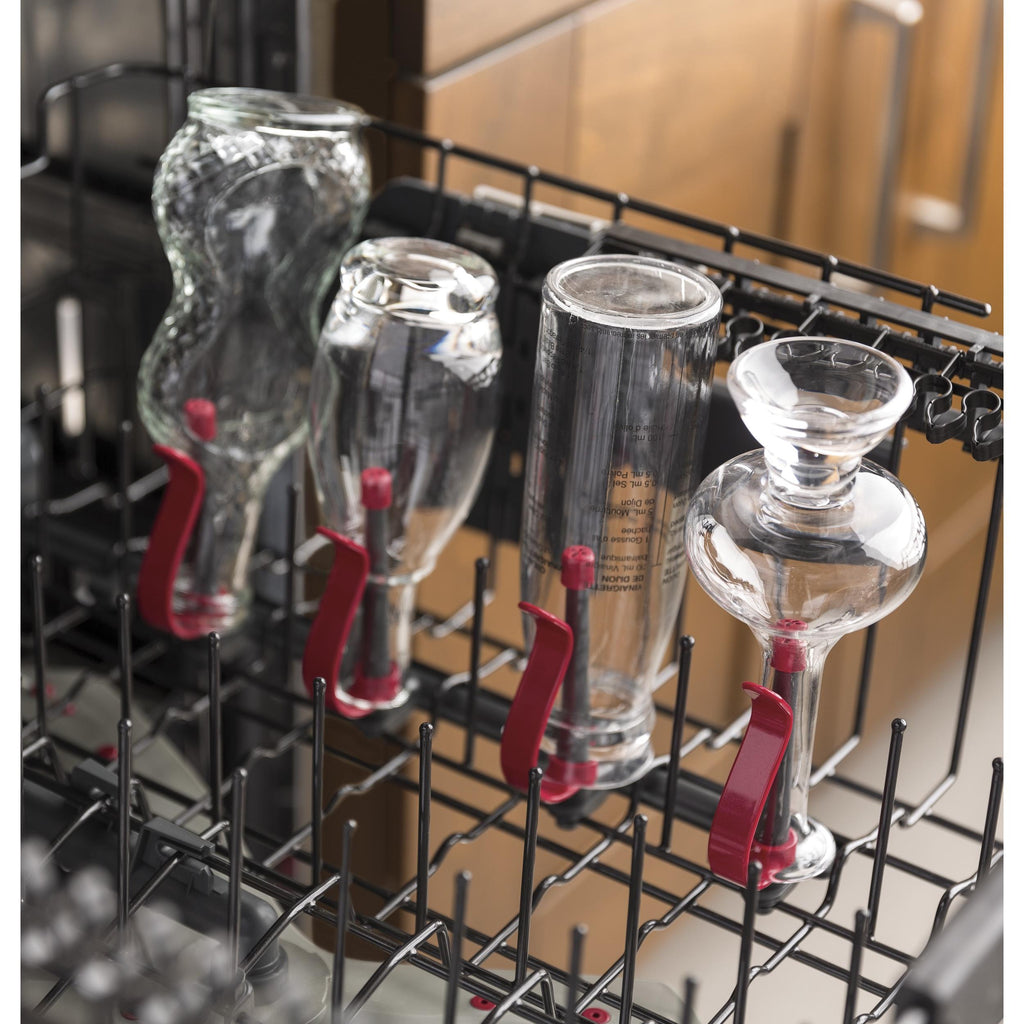

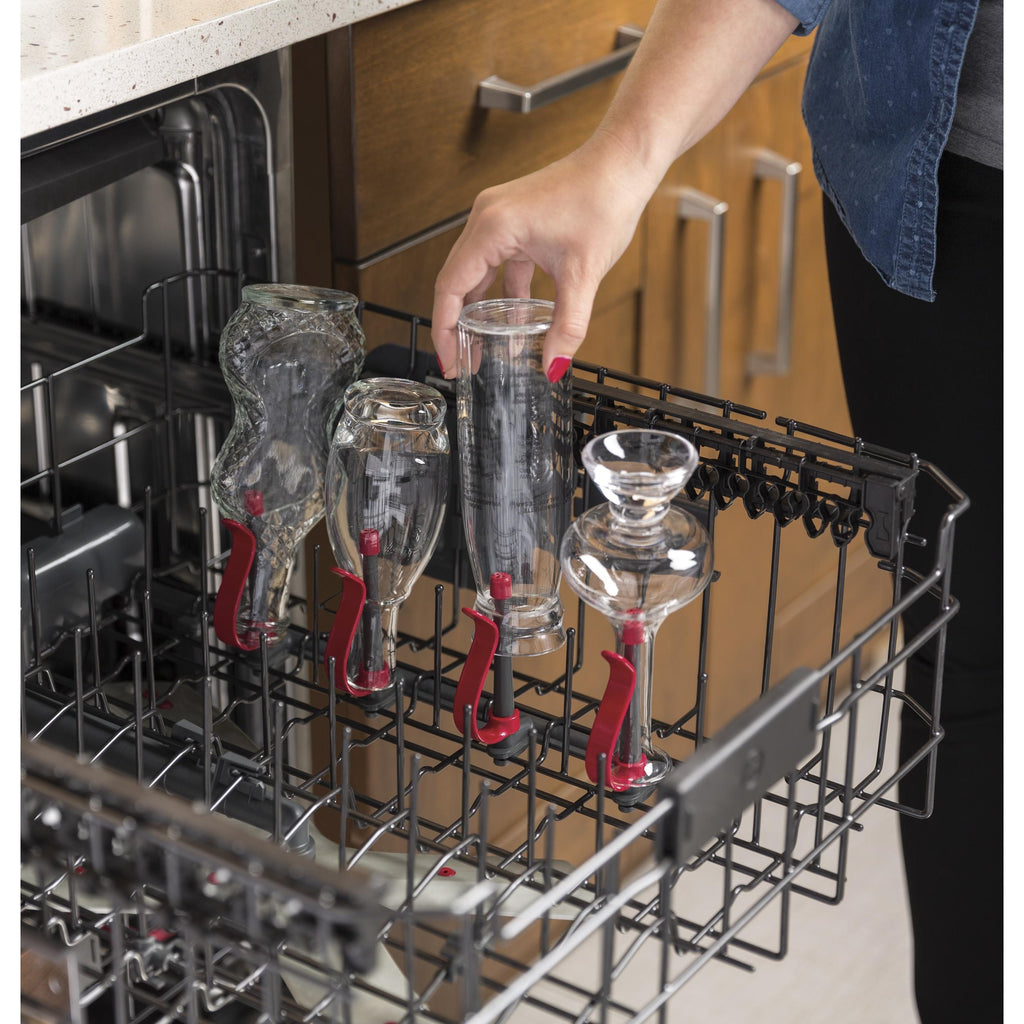

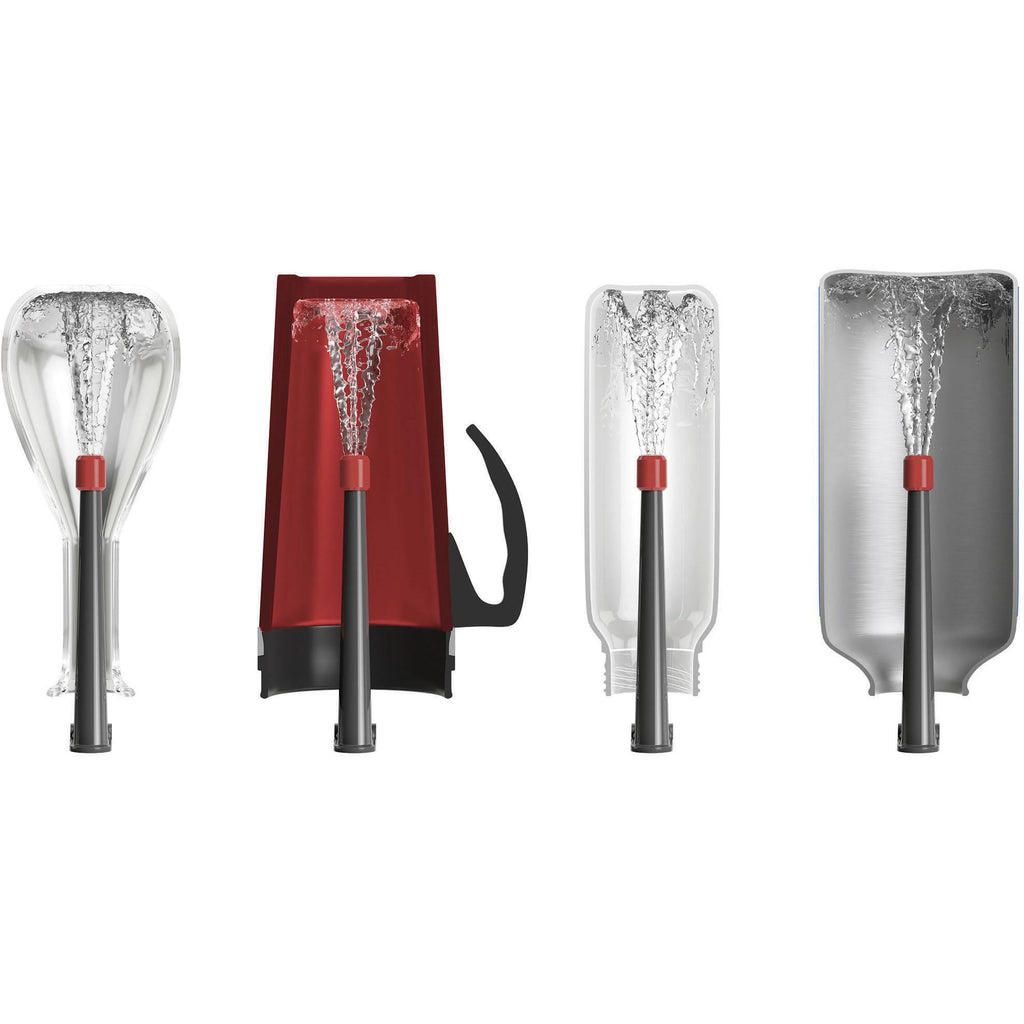

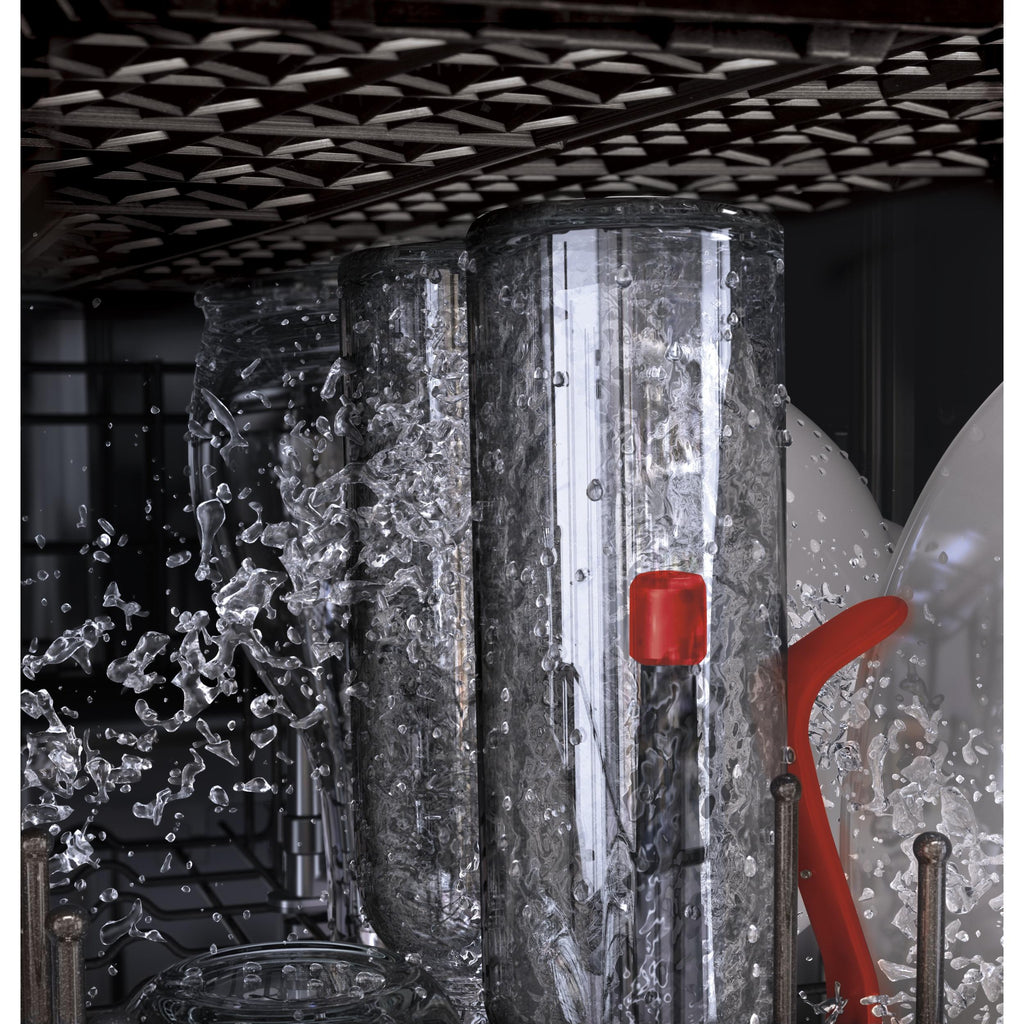

BOTTLE JETS
Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean.
WASH ZONES
Wash a true half-load in either the upper or lower rack without sacrificing cycles and options available on a full wash.

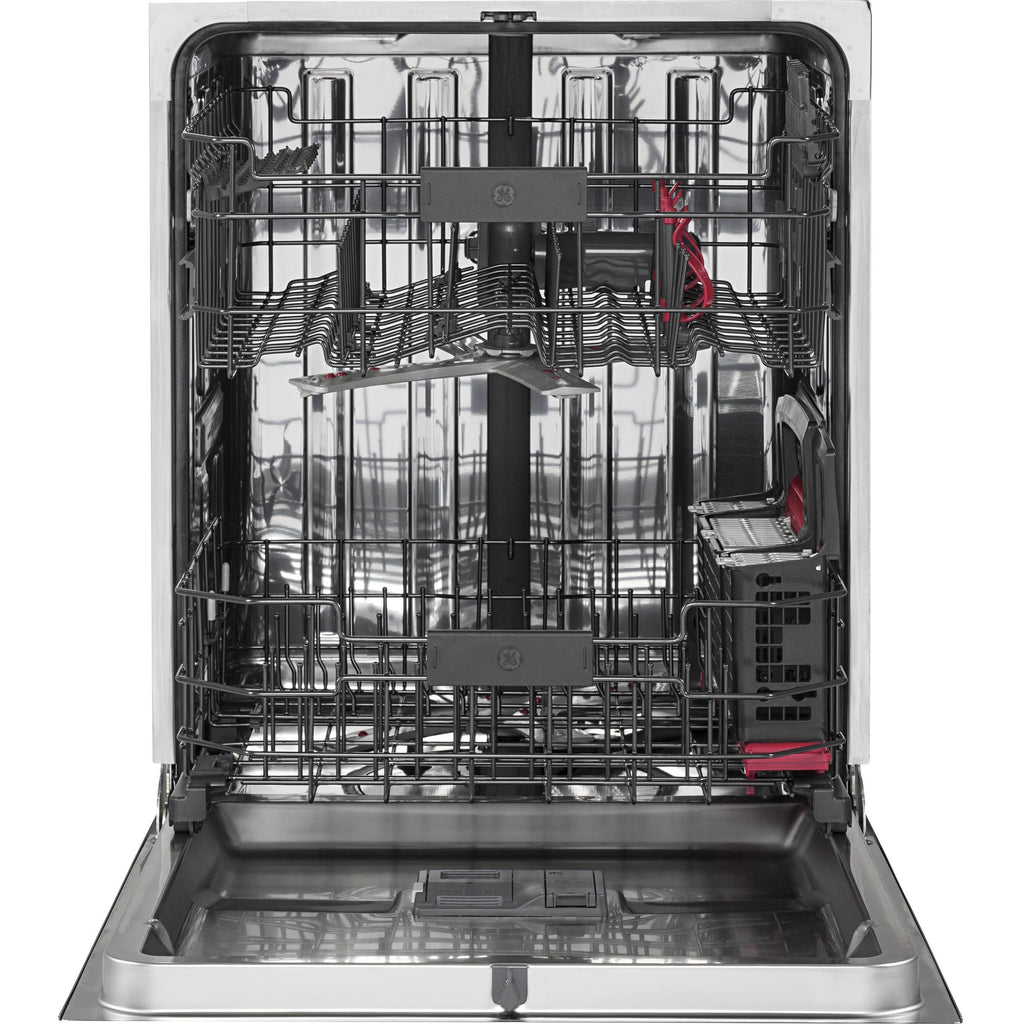

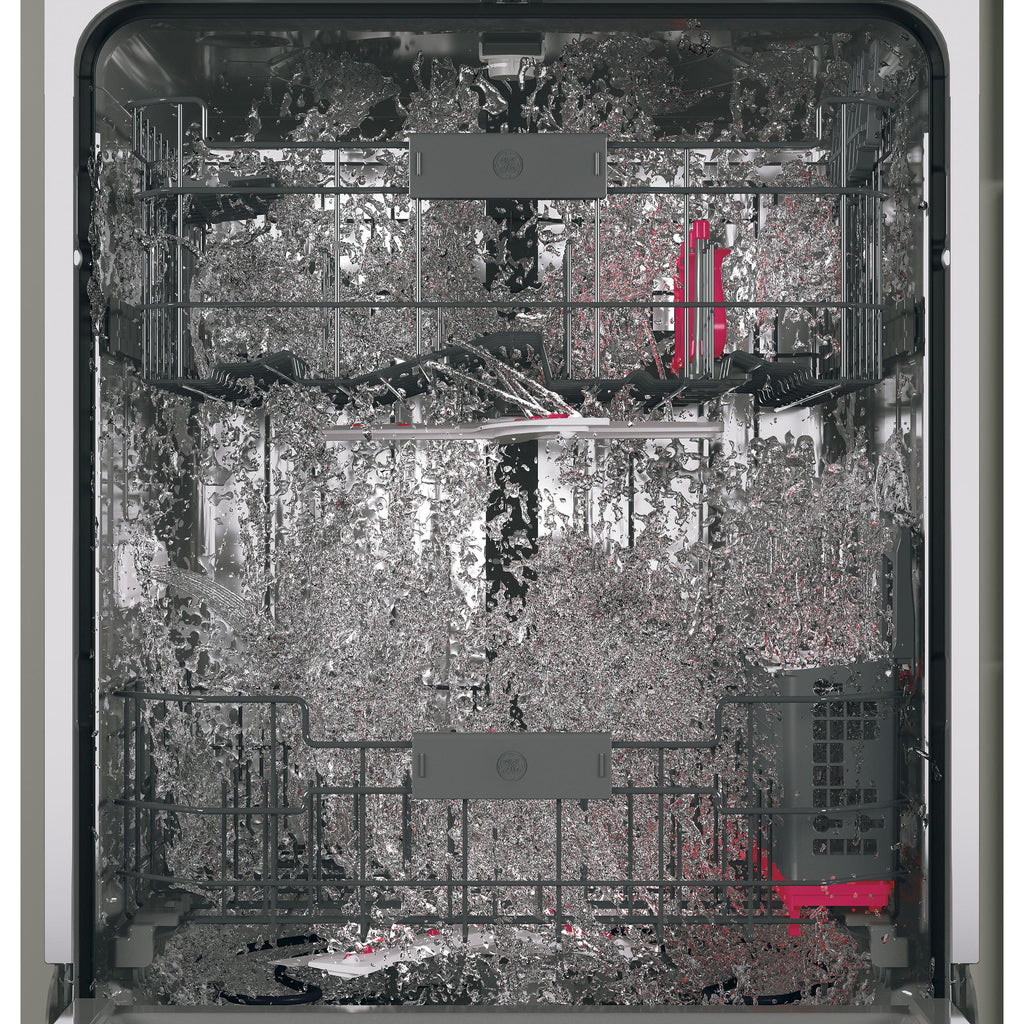

ADVANCED WASH SYSTEM WITH MORE THAN 140 CLEANING JETS
Achieve the ultimate clean from an industry-leading number of jets that deliver complete washing coverage to every corner of the dishwasher

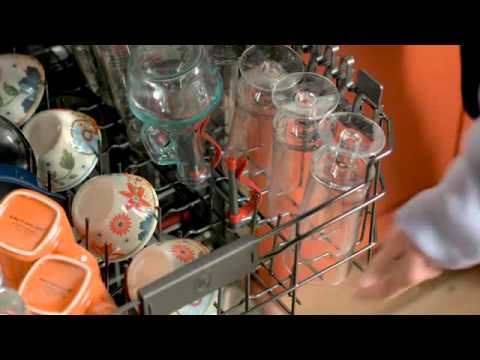

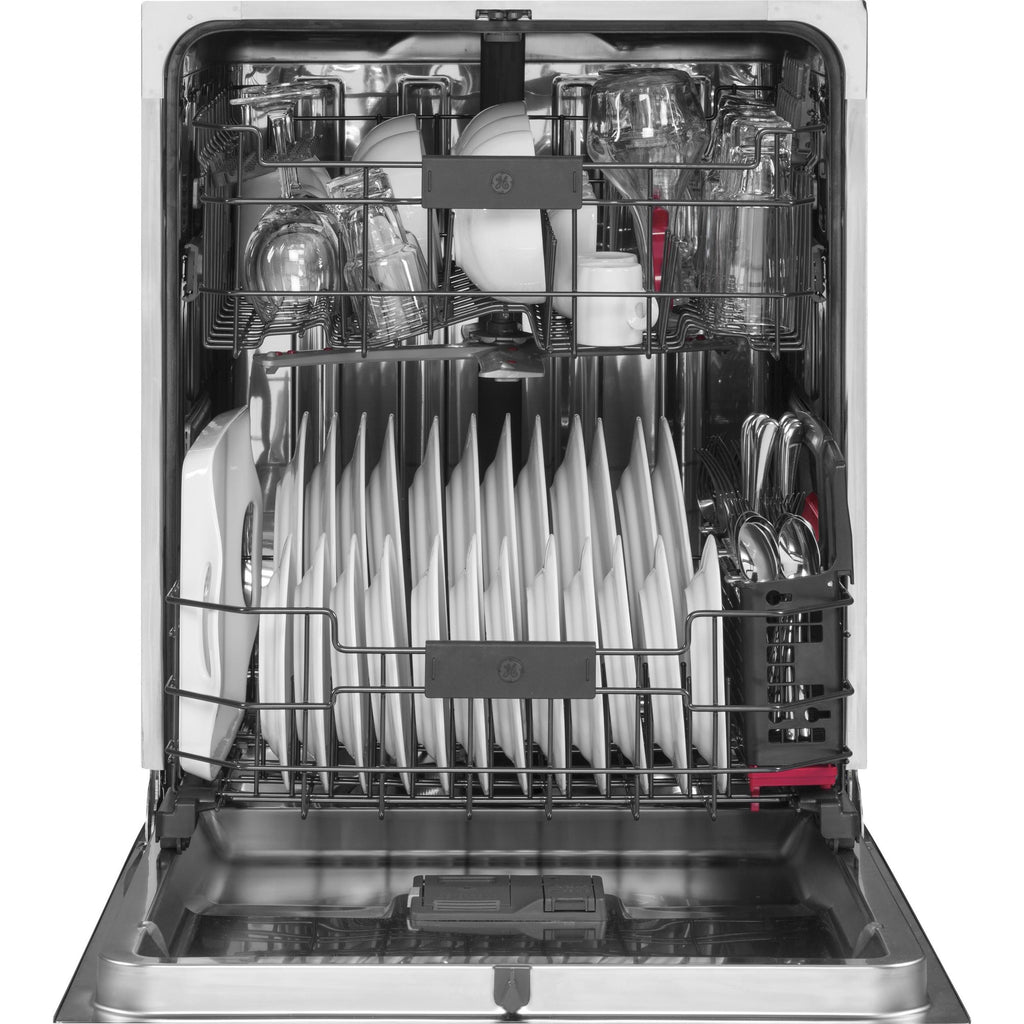

EASY TOUCH ADJUSTABLE UPPER RACK WITH 2 STEM SAFE SHELVES
Quickly adjust the upper rack 2 inches up or down to accommodate tall glassware and 10 ½” plates with plenty of room in the bottom rack for large platters and cookie sheets.
HIDDEN VENT WITH FAN DRY AND HIDDEN HEATER
Get dry and table-ready items every time thanks to a 1,000-watt hidden heater and fan that circulates the air to remove moisture

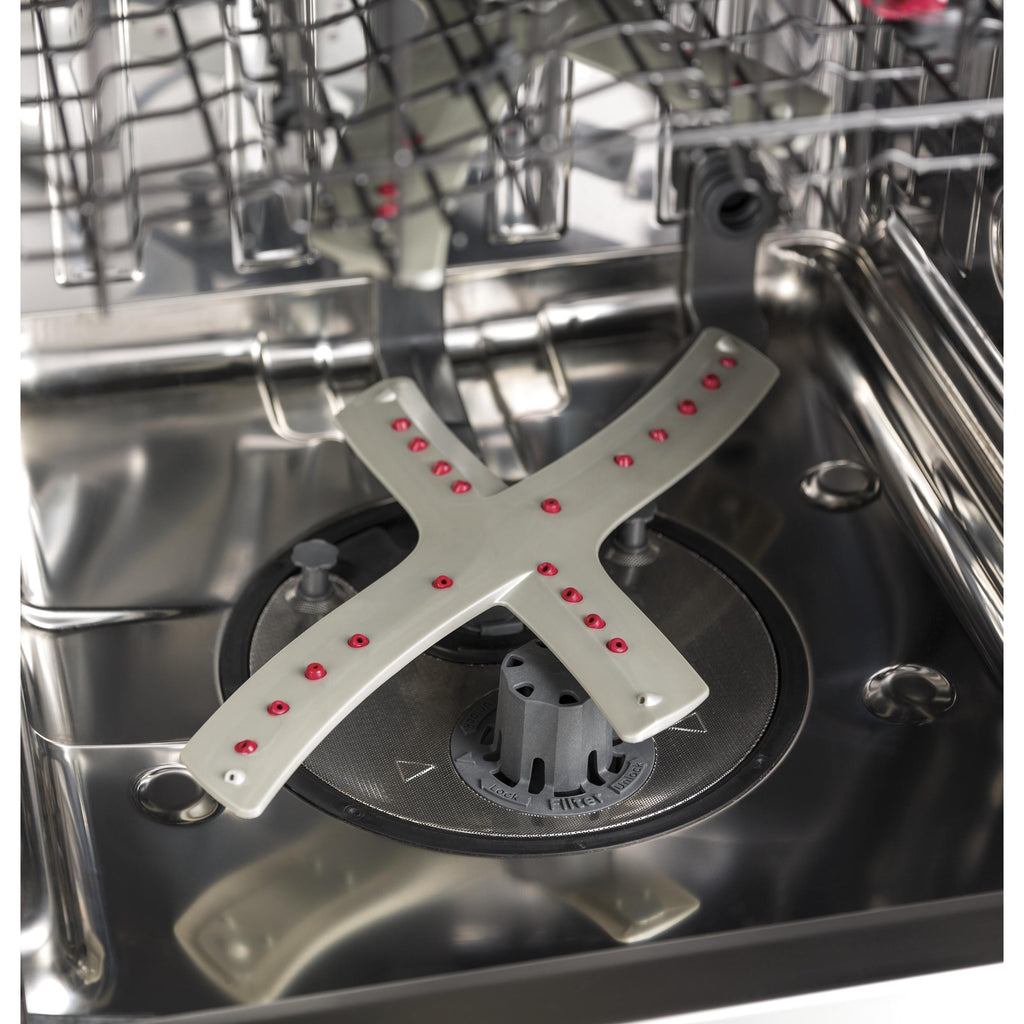

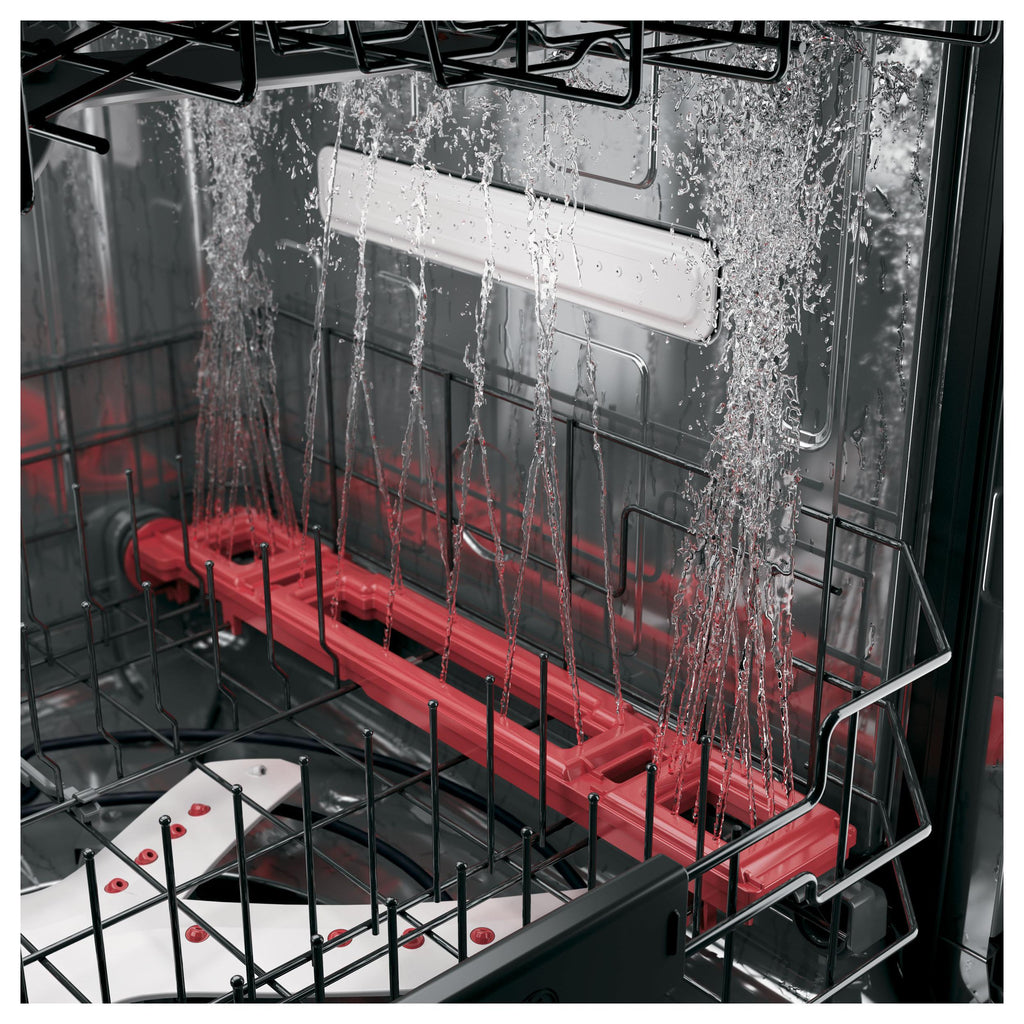

REVERSING QUAD BLADE WASH ARM
Dishes come out impressively clean thanks to this revolutionary lower wash arm, with 25 spray jets reversing direction to hit items from every angle.
Full extension smooth glide upper rack with fold-down tines
Easily fit large or odd-shaped items in the upper rack
Specifications
General
Series Name
800 series
Type
Built-In
Color
Black Stainless
Manufacturer Color
Black Stainless
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
7
Wash Cycles
• Auto Sense
• Heavy Wash
• Light Wash
• Normal Wash
• Express
• Rinse
• eWash
• Heavy Wash
• Light Wash
• Normal Wash
• Express
• Rinse
• eWash
Options
• Bottle Jets
• Child Lock
• Delay Start 1-12 Hours
• Heated Dry
• Pre Soak
• Sani (NSF Certified)
• Start/Reset
• Steam Prewash
• Wash TempBoost
• Wash Zone Lower Only
• Wash Zone Upper Only
• Child Lock
• Delay Start 1-12 Hours
• Heated Dry
• Pre Soak
• Sani (NSF Certified)
• Start/Reset
• Steam Prewash
• Wash TempBoost
• Wash Zone Lower Only
• Wash Zone Upper Only
Features
Technologies
Piranha™ hard food disposer
Delay Start Information
1-12 Hours
Delay Start
Yes
Control Lock
Yes
Filtration System
Yes

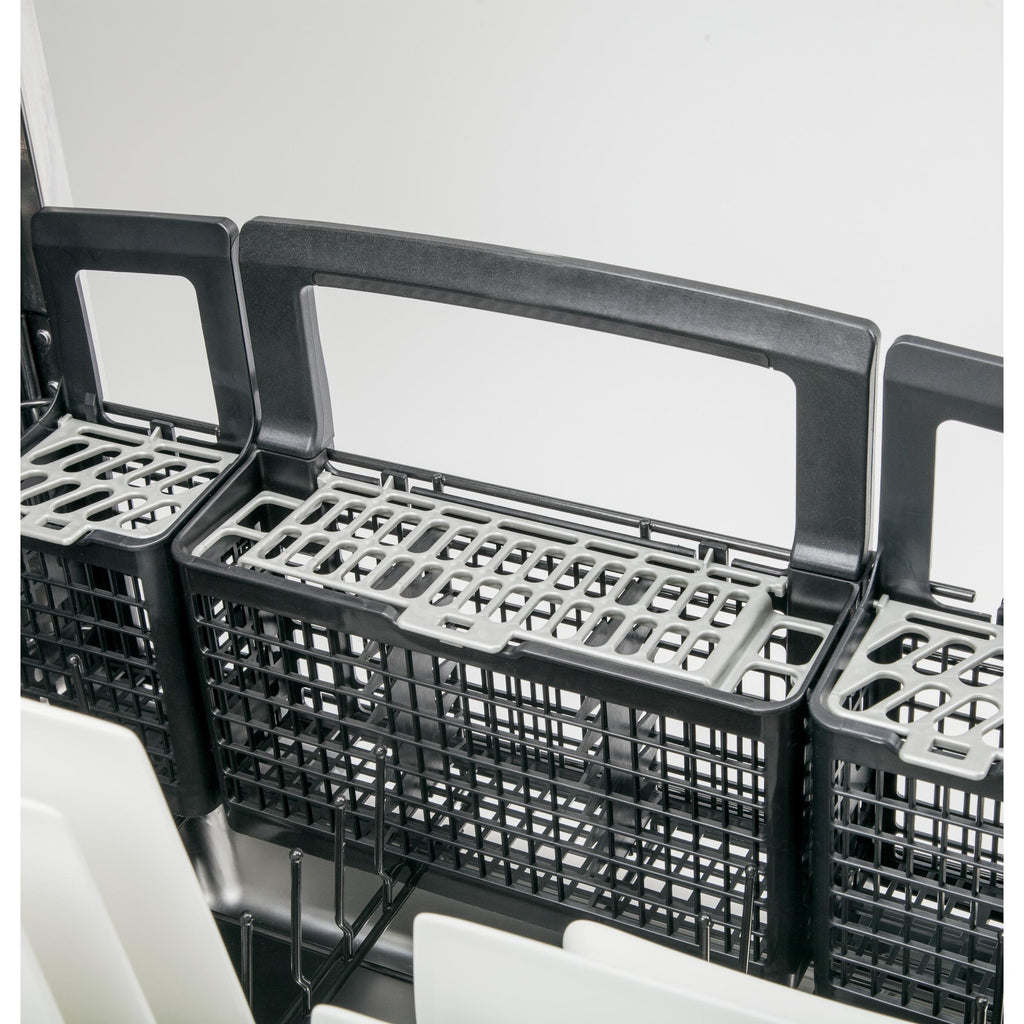

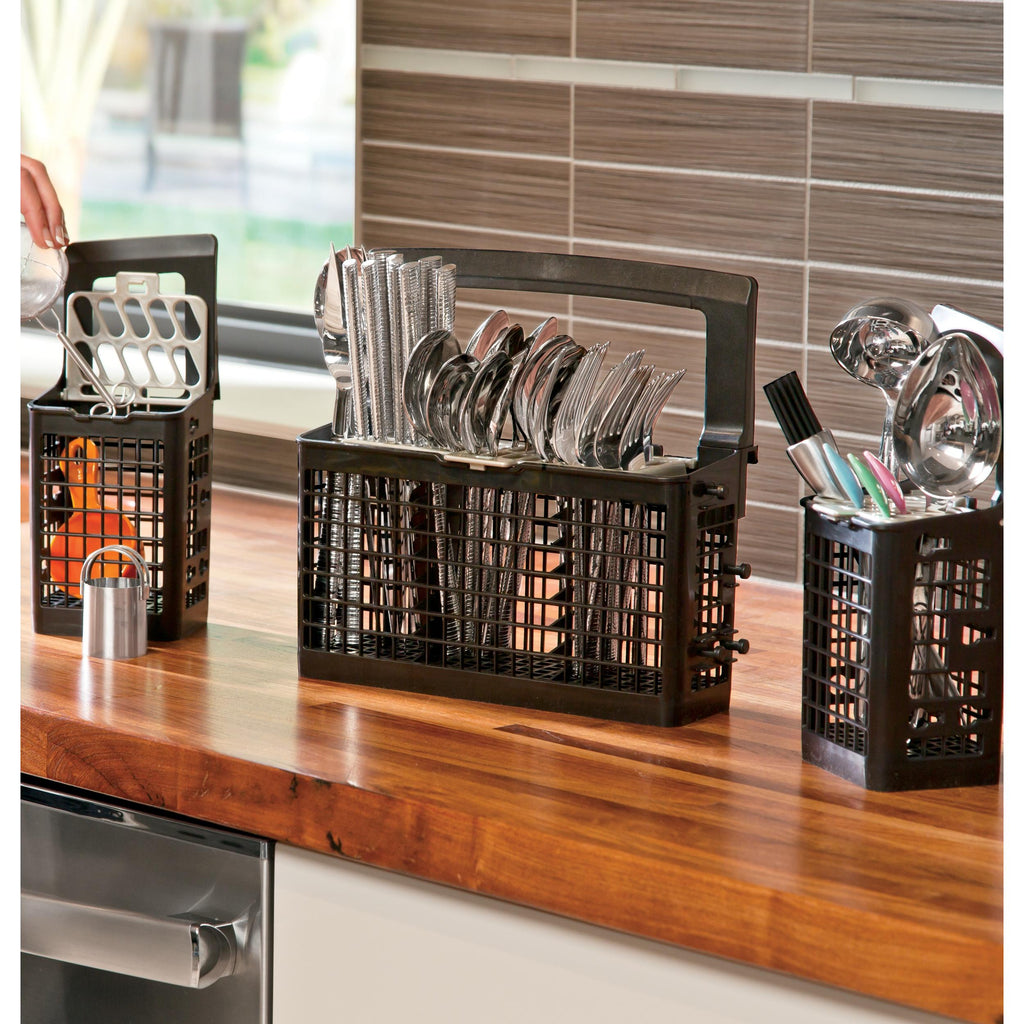

Silverware Basket
Yes
Additional Information
• Tall Tub
• Heated Dry
• Pre Soak
• Sani (NSF Certified)
• Start/Reset
• Wash TempBoost
• Wash Zone (Lower Only/Upper Only)
• 140+ Spray Jet Wash System
• Bottle Jets
• Deep Clean Silverware Jets
• Drain Pump
• Hidden Heater
• Piranha™ Hard Food Disposer with removable filter
• Quad Blade Middle Wash Arm
• Reversing Quad Blade Lower Wash Arm
• Side Jets
• Variable speed dual pumps and motors
• 1 "Clean" Light, 1 "Sanitized" Light, 1 "Low Rinse Aid" Light
• Audible End-of-Cycle Signal

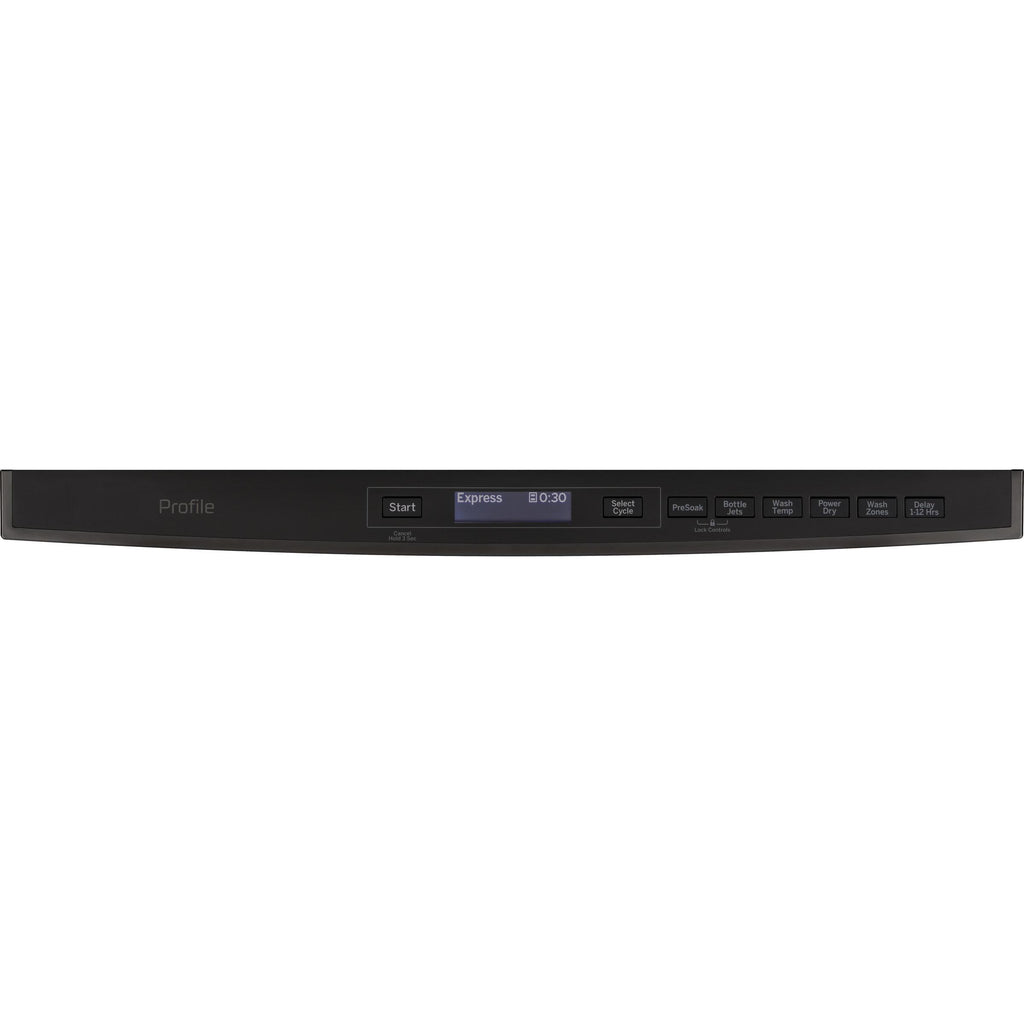

• LCD Control Display with Cycle Status Bar on door
• Last Cycle Memory
• White LEDs
• Power Cord Not Included
• Heated Dry
• Pre Soak
• Sani (NSF Certified)
• Start/Reset
• Wash TempBoost
• Wash Zone (Lower Only/Upper Only)
• 140+ Spray Jet Wash System
• Bottle Jets
• Deep Clean Silverware Jets
• Drain Pump
• Hidden Heater
• Piranha™ Hard Food Disposer with removable filter
• Quad Blade Middle Wash Arm
• Reversing Quad Blade Lower Wash Arm
• Side Jets
• Variable speed dual pumps and motors
• 1 "Clean" Light, 1 "Sanitized" Light, 1 "Low Rinse Aid" Light
• Audible End-of-Cycle Signal
• LCD Control Display with Cycle Status Bar on door
• Last Cycle Memory
• White LEDs
• Power Cord Not Included
Electrical Information
Information
• 120 V
• 9 A
• 60 Hz
• 9 A
• 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
Power Cord
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.33 cm
Height (Min.)
33.37 inch(es) / 84.77 cm
Depth (Without Handle)
24 inch(es) / 60.96 cm
Weight
108 lb(s) / 48.99 kg
Additional Dimensions
• Overall Height: 34 in
• Height with Legs Retracted - Minimum Height : 33 3/8 in
• Height with Legs Extended - Maximum Height: 34 5/8 in
• Overall Depth: 24 in
• Overall Width: 23 3/4 in
• For more information please refer to dimension guide
• Height with Legs Retracted - Minimum Height : 33 3/8 in
• Height with Legs Extended - Maximum Height: 34 5/8 in
• Overall Depth: 24 in
• Overall Width: 23 3/4 in
• For more information please refer to dimension guide
Shipping Dimensions
Weight
120.99 lb(s) / 54.88 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
84691823612
