Features
FIT GUARANTEE
Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy.

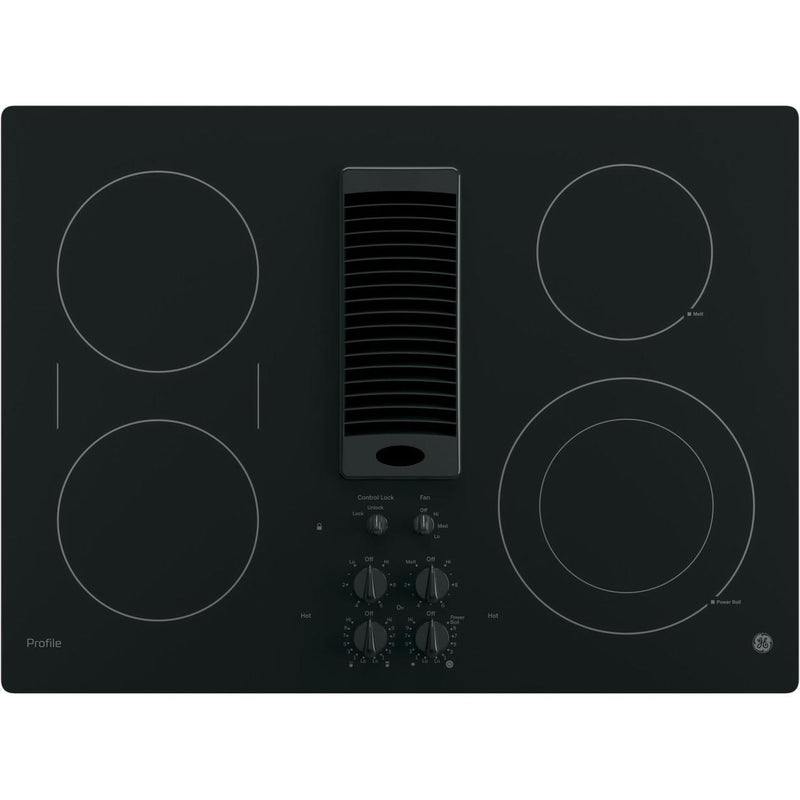

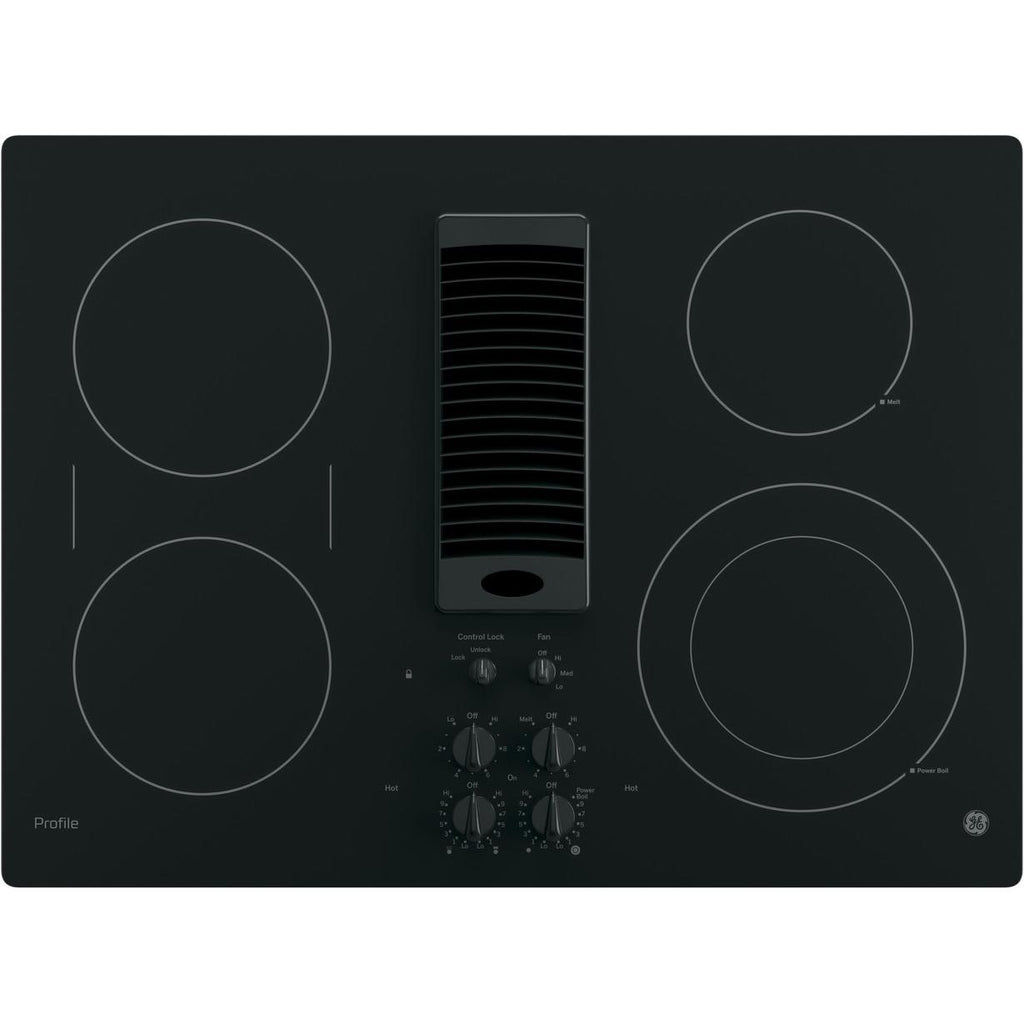

FIVE RADIANT COOKING ELEMENTS
Cook foods quickly and evenly on this sleek, glass surface.

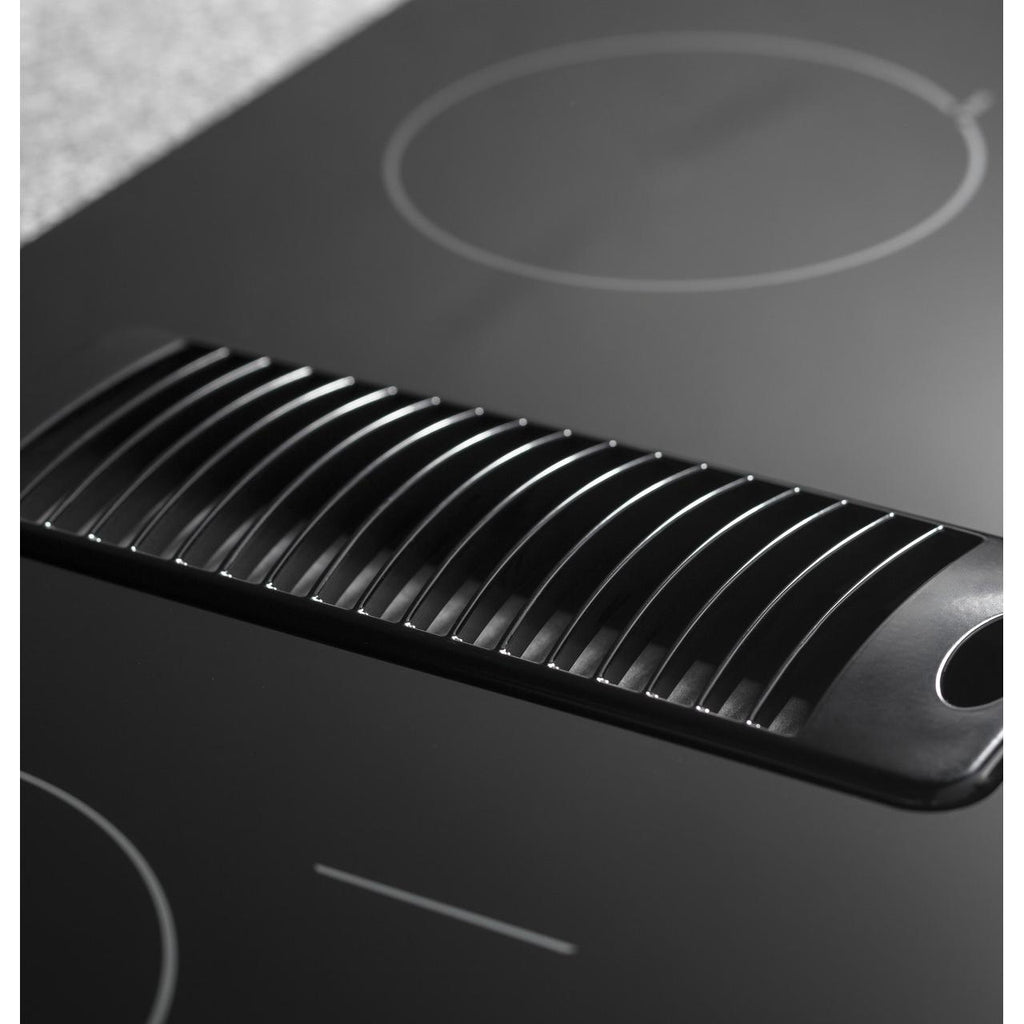

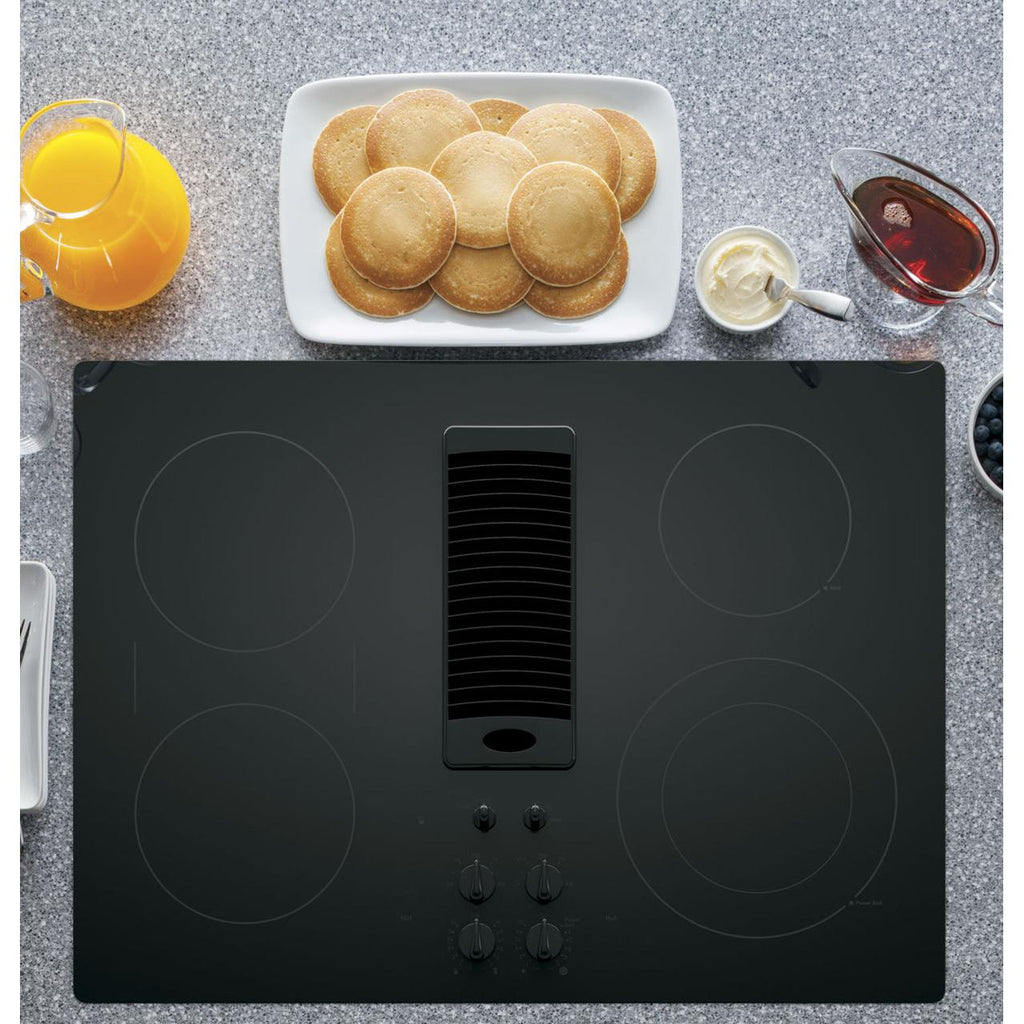

DOWNDRAFT EXHAUST
Powerful exhaust system effectively pulls smoke and steam out of the kitchen.

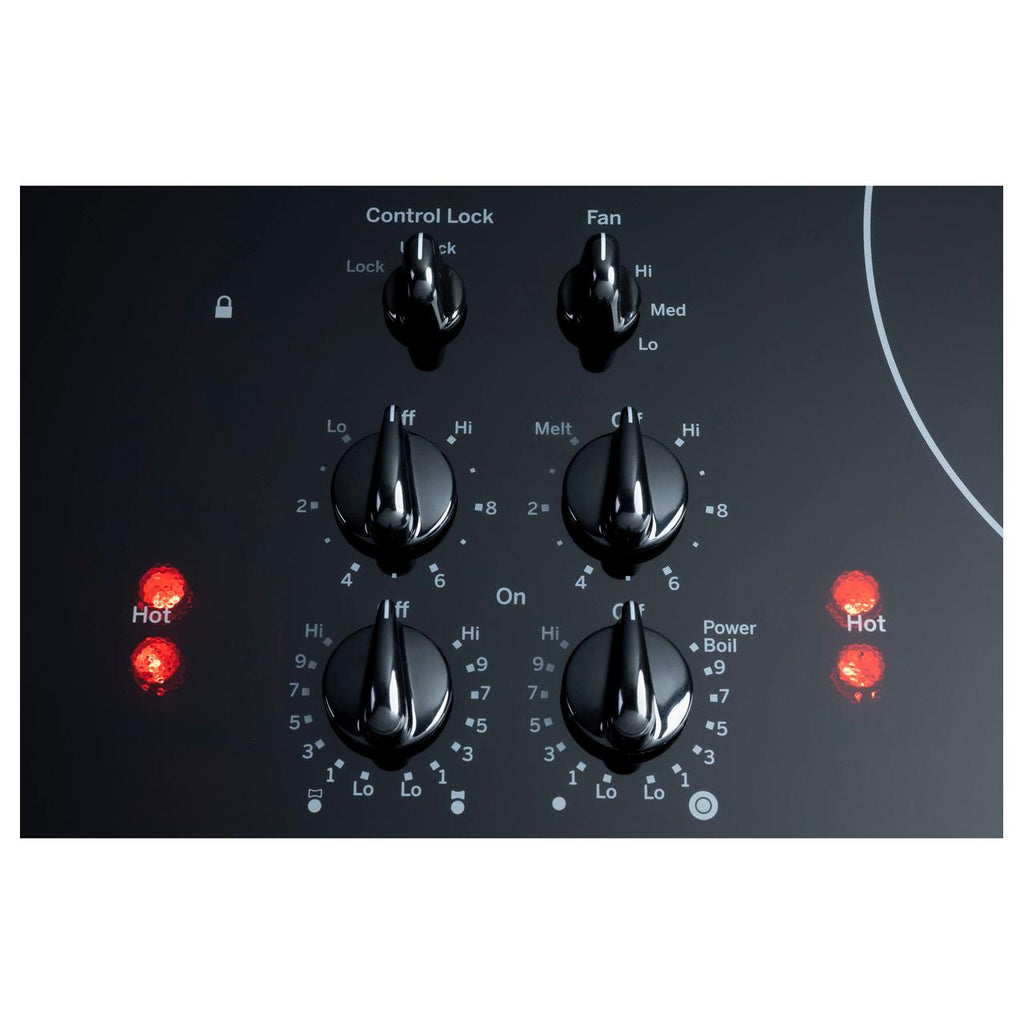

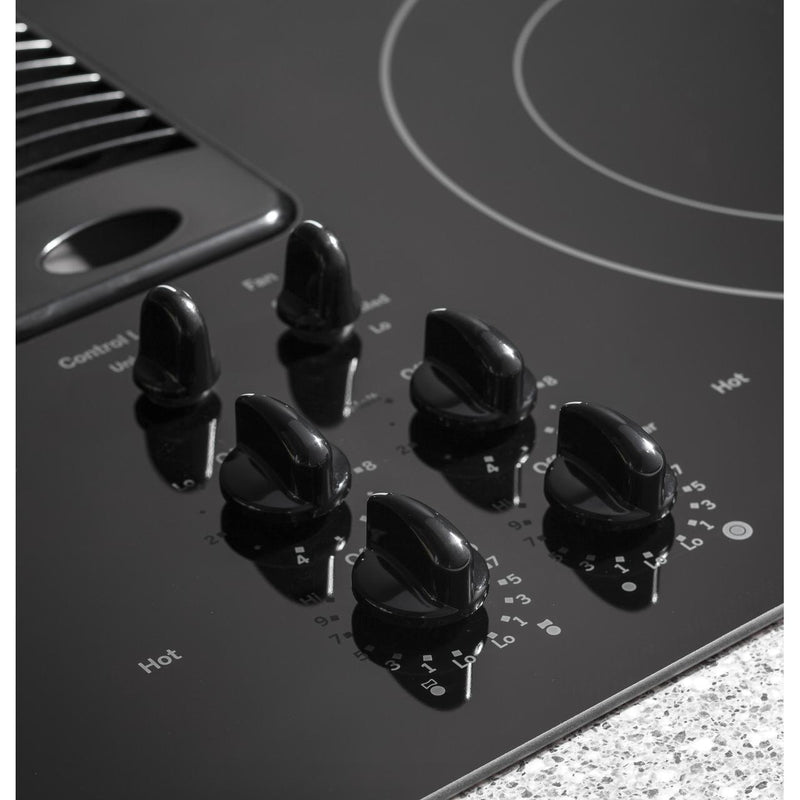

KNOB CONTROLS WITH BLACK GLASS SURFACE
Achieve a modern look with the convenience of knob controls.

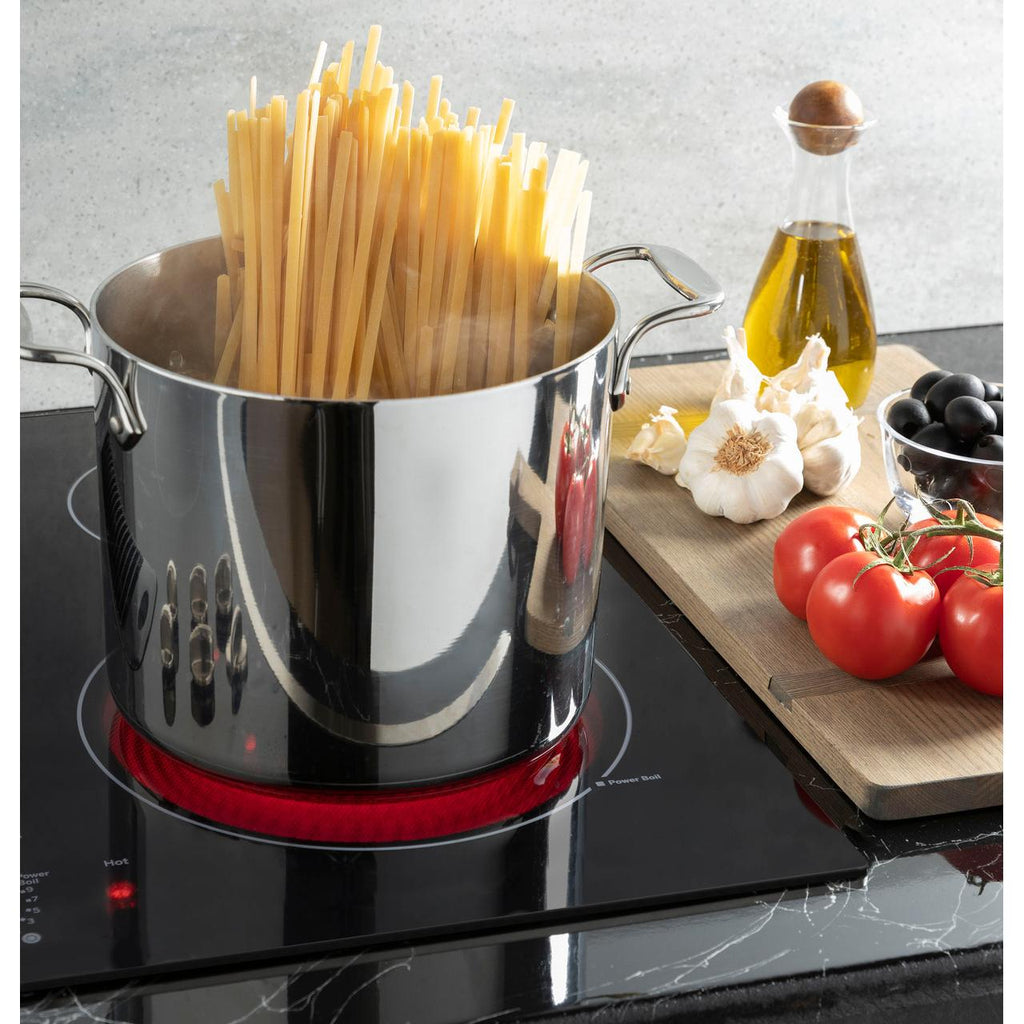

9"/6" POWER BOIL ELEMENT
Use different pan sizes on this single, 3,000-watt flexible element that produces rapid powerful heat.

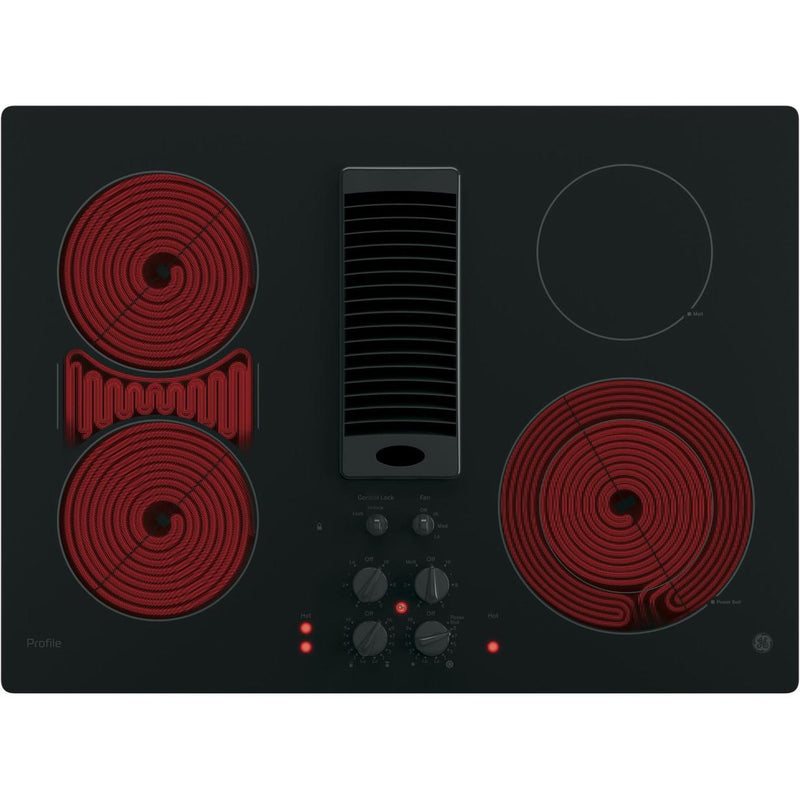

BRIDGE ELEMENT
Combines cooking elements into one cooking area.

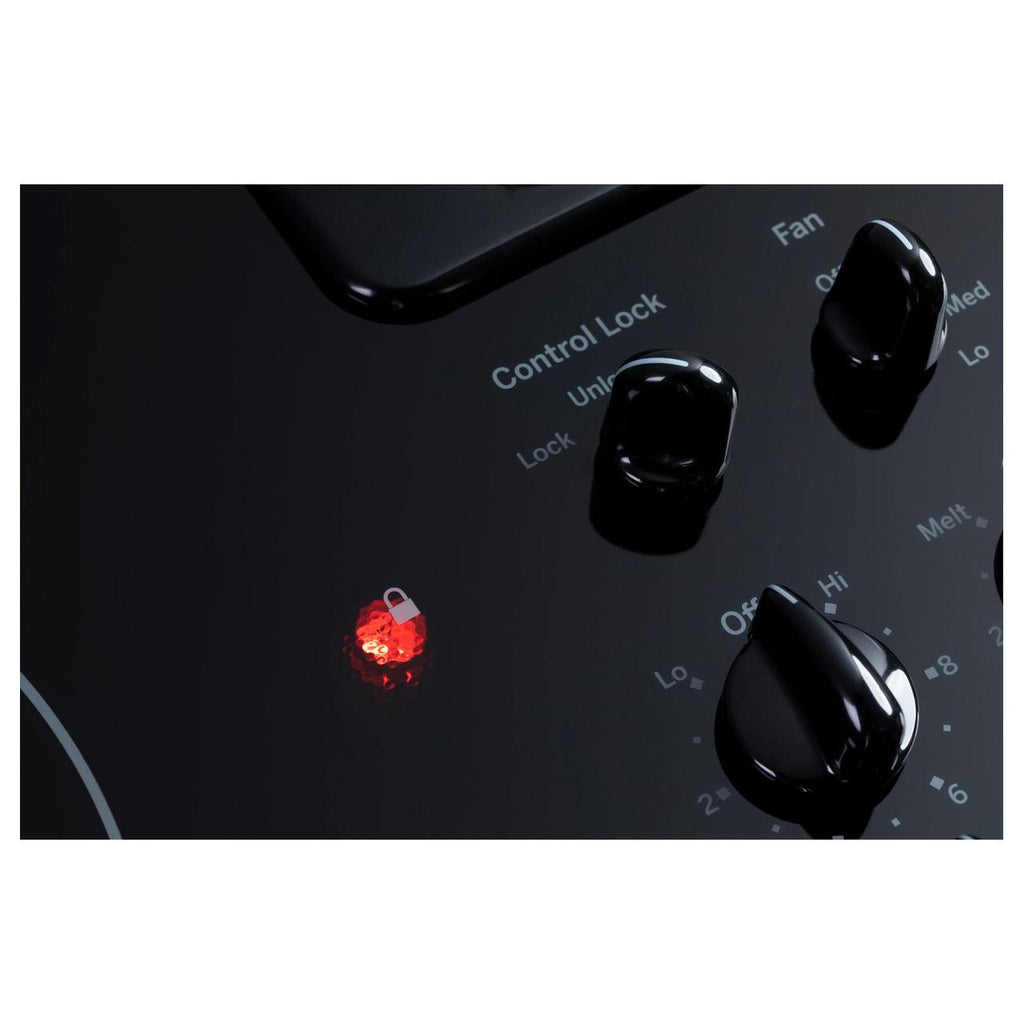

CONTROL LOCK CAPABILITY
Protects against unintended activation.

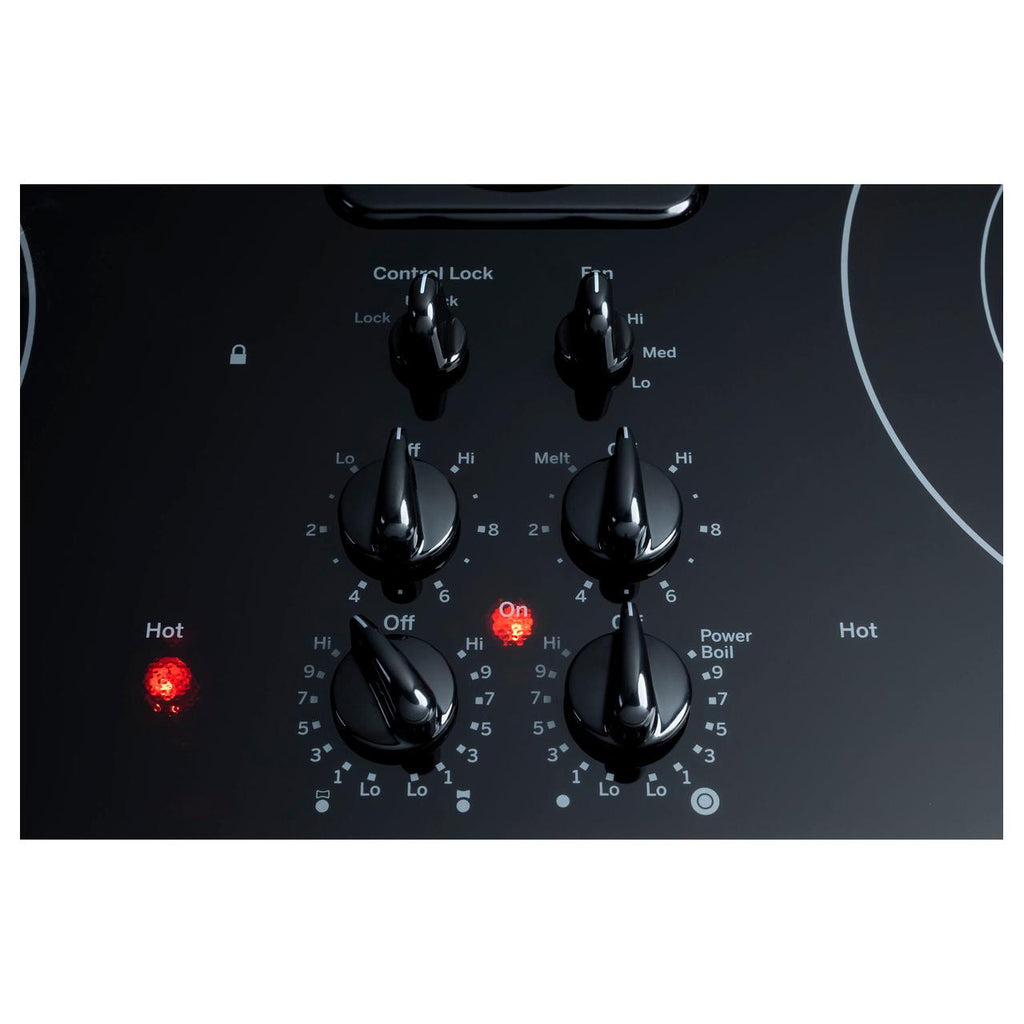

HOT SURFACE INDICATOR LIGHTS
Know when elements are too hot to touch with a quick glance
COOKTOP 'ON' INDICATOR LIGHT
A light lets you know when an element is active
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Element - Left Front: 1800W
• Element - Left Rear: 1800W
• Element - Right Front: 3000W Power Boil
• Element - Right Rear: 1500W
• Bridge Element: 800W (4400W Total)
• Element - Left Rear: 1800W
• Element - Right Front: 3000W Power Boil
• Element - Right Rear: 1500W
• Bridge Element: 800W (4400W Total)
Burner/Element Size
• Element - Left Front: 7"
• Element - Left Rear: 7"
• Element - Right Front: 9"/6"
• Element - Right Rear: 6"
• Element - Left Rear: 7"
• Element - Right Front: 9"/6"
• Element - Right Rear: 6"
Burners
Sealed
Elements
Smoothtop
Surface Features
• Frameless
• Cooktop Surface: Patterned Black on Black Glass Ceramic
• Cooktop Burner Type: Ribbon
• Cooktop Surface: Patterned Black on Black Glass Ceramic
• Cooktop Burner Type: Ribbon
Features
Control Lock
Yes
Downdraft Ventilation
Yes
Additional Information
• Control Location: Front Center
• Control Type: Infinite Heat Rotary
• CFM/ Sones Rating: 400/ 7.0 (High Speed)
• Downdraft Vent Fan Speeds: 3
• Indicator Lights: 4 Hot Surface, Surface Element "ON"
• Control Type: Infinite Heat Rotary
• CFM/ Sones Rating: 400/ 7.0 (High Speed)
• Downdraft Vent Fan Speeds: 3
• Indicator Lights: 4 Hot Surface, Surface Element "ON"
Electrical Information
Information
• Amp Rating at 208V: 40
• Amp Rating at 240V: 40
• KW Rating at 208V: 6.9
• KW Rating at 240V: 9.1
• Amp Rating at 240V: 40
• KW Rating at 208V: 6.9
• KW Rating at 240V: 9.1
Certifications and Approvals
Information
Listed by Underwriters Laboratories
Accessories
Included
Cooktop Cleaning: WX10X10020
Optional
Alternate Installation Kit (WB01X24570)
Dimensions
Class Width
30"
Width
29.75 inch(es) / 75.56 cm
Height
21.87 inch(es) / 55.56 cm
Depth
2.5 inch(es) / 6.35 cm
Weight
45 lb(s) / 20.41 kg
Additional Dimensions
• Cabinet Width: 30.0 in
• Cutout Dimensions (Width x Depth)(In.): 28-7/8 x 20-5/8
• Cutout Dimensions (Width x Depth)(In.): 28-7/8 x 20-5/8
Shipping Dimensions
Width
26.3 inch(es) / 66.80 cm
Height
22.8 inch(es) / 57.91 cm
Depth
33.8 inch(es) / 85.85 cm
Weight
60.01 lb(s) / 27.22 kg
Warranty
Warranty
• Parts Warranty: Limited 1-year entire appliance
• Labor Warranty: Limited 1-year entire appliance
• Labor Warranty: Limited 1-year entire appliance
UPC
UPC#
084691896944
