Features

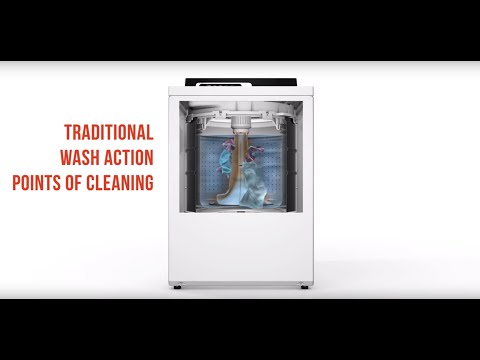

THE PERFECT WASH
Speed Queen top load washers feature a one of a kind wash system that not only delivers the best wash available, but also takes care of clothes. The unique auto fill system guarantees that every load uses enough water for an effective wash. The tub and agitator work together to create a gentle wash action that moves the maximum amount of water through the clothes providing the customer a premium wash and level of fabric care.

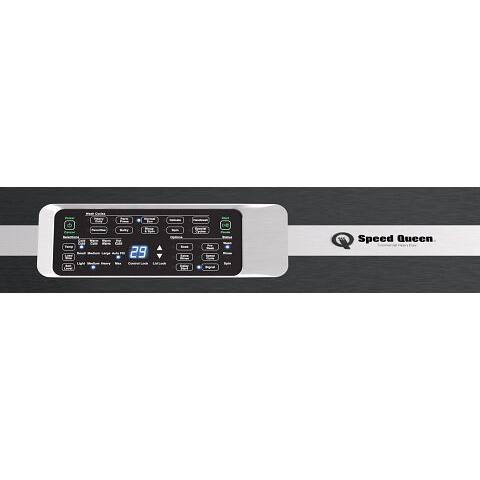

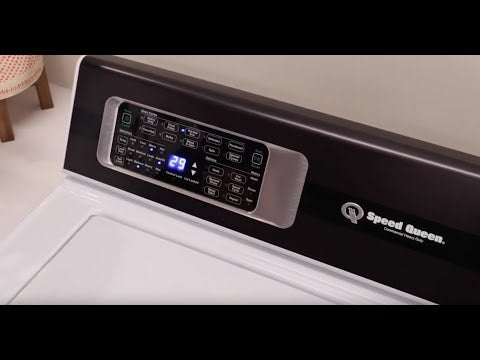

EXTREME-TESTED ELECTRONIC CONTROLS
Many washers and dryers have “touch panel” controls. But, none have industry-best warranties backing them up like Speed Queen controls do. Controls are designed and manufactured to last 25 years and we back that up with rigorous testing to make sure our circuitry stands up to extreme moisture, temperature, vibration and power surges. So go ahead and push our buttons. You’ll experience the quality, dependability and durability we build into every Speed Queen machine.
Additional Features
AUTOMATIC BALANCING SUSPENSION SYSTEM
ABS provides the industry's best out-of-balance handling, completing
wash cycles without interruption.
SOLID MOUNT SUSPENSION SYSTEM
Solid Mount Suspension System features a full steel base with heavy-duty springs for best-in-class out-of-balance performance, less vibration and longer machine life.
Specifications
General
Series
TR7
Wash Action System
Agitator
Color
White
Manufacturer Color
White
Tub Material
Stainless Steel
Maximum Speed
820 rpm
Temperature Settings
4
Capacity
Total Capacity DOE
3.2 cu. ft.
DOE (By Class)
3.1 cu.ft. - 3.5 cu.ft.
Cycle Information
Number of Cycles
8
Wash Cycles
• 8 Preset special cycles
• Favorite cycles
• Speed cycle
• Favorite cycles
• Speed cycle
Options
• Extra rinse
• Warm rinse
• Prewash
• Delay start
• Warm rinse
• Prewash
• Delay start
Features
Technologies
• Speed Queen Perfect Wash™
• Solid Mount Suspension System
• Solid Mount Suspension System
Dispensers
• Bleach
• Fabric softener
• Fabric softener
Additional Information
• Variable 1HP motor
• Auto balancing system
• Outer draintub material: Porcelain
• Tuff guard coated top
• Rear self-leveling legs
• Variable water level selector
• Agency approvals: cULus
• Load size selections: 4
• Soil level selections: 4
• Time remaining display
• Auto balancing system
• Outer draintub material: Porcelain
• Tuff guard coated top
• Rear self-leveling legs
• Variable water level selector
• Agency approvals: cULus
• Load size selections: 4
• Soil level selections: 4
• Time remaining display
Accessories
Optional
• Drain extension kit – Part No: 204512
• Hose kit – Part No: 807239
• Siphon break kit – Part No: 562P3
• Hose kit – Part No: 807239
• Siphon break kit – Part No: 562P3
Dimensions
Class Width
26" - 27"
Width
25.63 inch(es) / 65.09 cm
Height
42.75 inch(es) / 108.59 cm
Depth
28 inch(es) / 71.12 cm
Additional Dimensions
• Work surface height: 36"
• Height with lid open: 53"
• Height with lid open: 53"
Shipping Dimensions
Weight
195.99 lb(s) / 88.9 kg
Warranty
Warranty
• 7-Year for parts and labor
• Lifetime warranty outer drain tub and the stainless steel wash basket
• Lifetime warranty outer drain tub and the stainless steel wash basket
UPC
UPC#
810084500606
