Features
SECOND ICEMAKER OPTION
Always have extra ice on hand with an optional second icemaker in the freezer (IM5D kit sold separately)
ADVANCED WATER FILTRATION USES RPWFE REPLACEMENT FILTER
Reduces trace pharmaceuticals from water and ice* (* Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users’ water)
SHOWCASE LED LIGHTING
Positioned throughout the interior and under fresh food doors to spotlight foods inside the refrigerator and in the freezer.
TWINCHILL™ EVAPORATORS
Dual evaporators maintain separate environments in both the fresh food and freezer compartments to manage temperature and humidity levels and keep foods fresh. Cold, dry air stays in the freezer compartment to prevent freezer burn, and more humid air stays in the fresh food section to keep fresh food fresh longer.
TURBO COOL™ SETTING
The TurboCool™ setting "revs up" the refrigerator, cooling it quickly after frequent or extended door openings and also when hot items are placed inside.
When this feature is selected, the compressor is activated and the fans turn on at high speed. even when the door is open. The fresh food temperature will revert to the coldest setting for an 8 hour period or until TurboCool is turned off (whichever comes first). It maximizes the cooling ability of the fresh food compartment.
To turn the feature on or off, press and hold the Fridge pad for 3 seconds. On models with a touch screen (LCD) display, press Express Mode.
TURBO FREEZE™ SETTINGS
The Turbo Freeze setting "revs up" the freezer compartment, cooling it quickly after frequent or extended door openings.
When this feature is selected, the compressor is activated and the freezer fan turns on at high speed, even when the door is open. The freezer temperature will revert to the coldest setting for a 2 1/2 hours period or until TurboFreeze is turned off (whichever comes first). It maximizes the cooling ability of the freezer compartment. The TurboFreeze and TurboCool can be run at the same time.
To turn the feature on or off, press and hold the Freezer pad for 3 seconds. On models with a touchscreen (LCD) display, press Express Mode.
SPACE-SAVING ICEMAKER
Located on the door with integrated bins to create more usable storage space.
ADA COMPLIANT
Designed to be accessible and easy to open.
Specifications
General
Refrigerator Type
French 3-Door
Installation Type
Freestanding
Door Hinge
Left and Right
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Capacity
Total
27.8 cu. ft.
Refrigerator
18.6 cu. ft.
Freezer
9.2 cu. ft.
Refrigerator Features
Technologies
• TwinChill™ Evaporators
• Showcase LED Lighting
• Turbo Cool and Turbo Freeze Settings
• Showcase LED Lighting
• Turbo Cool and Turbo Freeze Settings
Control Lock
Yes
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Crisper Drawers
Yes
Gallon Door
Yes
Additional Information
• Defrost Type: Frost Guard
• External Electronic Digital Temperature Display
• Fresh Food Cabinet Drawers (3 Total): 1 Full-Width with LED Lighting, 2 Adjustable Humidity
• Fresh Food Cabinet Shelves (5 Totalt): 4 Spill Proof, 4 Split Adjustable; 1 Full-Width
• Fresh Food Door Bins (6 Total): 2 Adjustable, 3 with Gallon Storage
• External Electronic Digital Temperature Display
• Fresh Food Cabinet Drawers (3 Total): 1 Full-Width with LED Lighting, 2 Adjustable Humidity
• Fresh Food Cabinet Shelves (5 Totalt): 4 Spill Proof, 4 Split Adjustable; 1 Full-Width
• Fresh Food Door Bins (6 Total): 2 Adjustable, 3 with Gallon Storage
Freezer Features
Additional Freezer Information
• 2 Full-Width Baskets
• 2 Interior Lighting - LED
• Turbo Freeze
• 2 Interior Lighting - LED
• Turbo Freeze
Ice and Water
Ice System
Exterior
Water System
Exterior
Filtration
Yes
Filtration Indicator
Yes

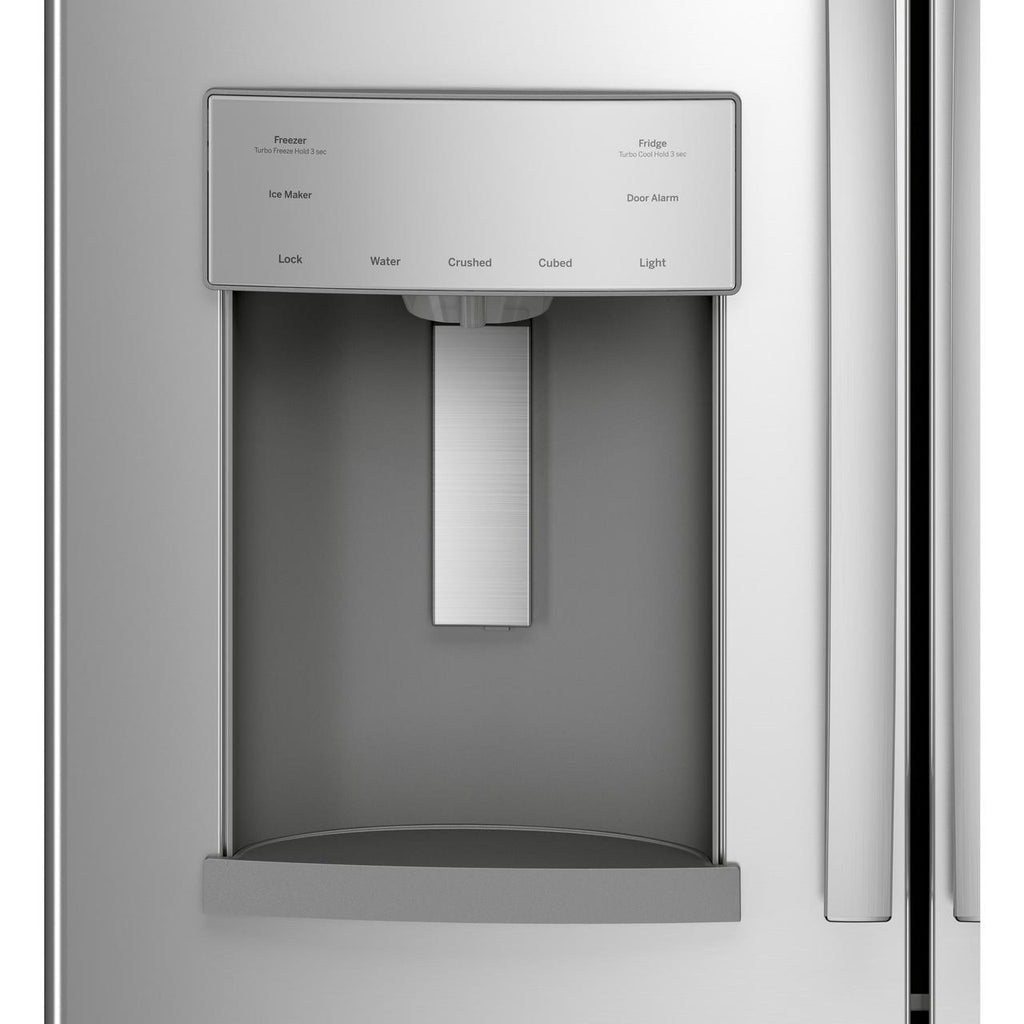

Dispenser Features
• Cubes, Crushed Ice and Water
• LED Dispenser Light
• Advanced Filtration System (RPWFE)
• LED Dispenser Light
• Advanced Filtration System (RPWFE)
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Optional
Optional 2nd Icemaker (IM5D) in Freezer
Dimensions
Class Width
35" to 37.9"
Class Height
70" and More
Width
35.75 inch(es) / 90.80 cm
Height (With Hinge)
70.5 inch(es) / 179.07 cm
Depth (Without Handles)
34.75 inch(es) / 88.26 cm
Depth (With Handles)
36.25 inch(es) / 92.08 cm
Weight
370 lb(s) / 167.83 kg
Additional Dimensions
• Width with door open 90 Degrees with door handle (in.): 44-5/8
• Depth with fresh food door open 90 Degrees (in.): 48-3/8
• Case depth without door (in.): 29-3/8
• Height to top of case (in.): 69
• Width with doors open fully (in.): 68-1/4
• Min distance between side of case and wall, in either direction, to allow doors to open fully (in.): 16-3/8
• Depth with freezer door completely open (without handle) (in.): 51-7/8
• Depth with freezer door completely open (with handle) (in.): 53-3/8
• Depth with fresh food door open 90 Degrees (in.): 48-3/8
• Case depth without door (in.): 29-3/8
• Height to top of case (in.): 69
• Width with doors open fully (in.): 68-1/4
• Min distance between side of case and wall, in either direction, to allow doors to open fully (in.): 16-3/8
• Depth with freezer door completely open (without handle) (in.): 51-7/8
• Depth with freezer door completely open (with handle) (in.): 53-3/8
Shipping Dimensions
Width
37.5 inch(es) / 95.25 cm
Height
73.5 inch(es) / 186.69 cm
Depth
39 inch(es) / 99.06 cm
Weight
390 lb(s) / 176.90 kg
Warranty
Warranty
Limited 1-year on parts and labor for entire appliance
UPC
UPC#
084691848851
