Features

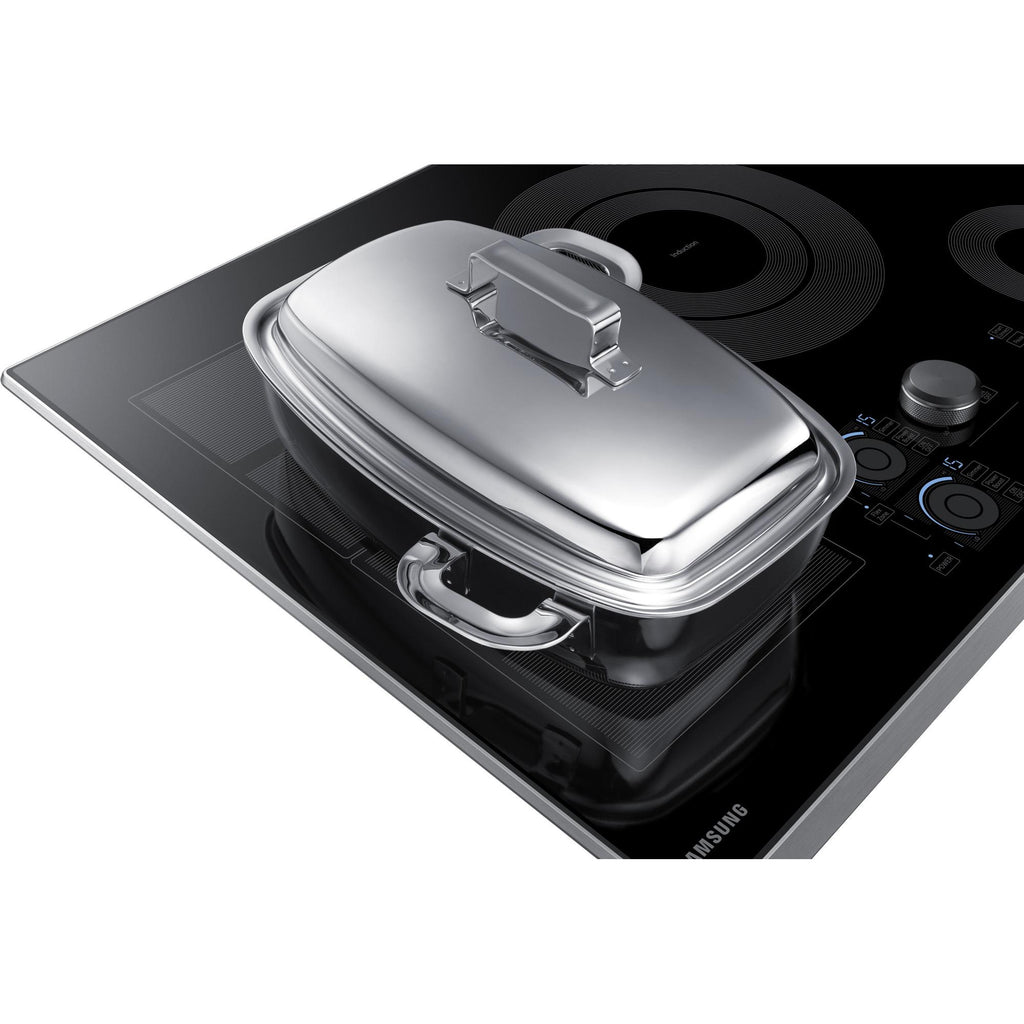

FLEX ZONE
Large cooking area designed to adapt to different pot shapes and sizes for optimal flexibility.

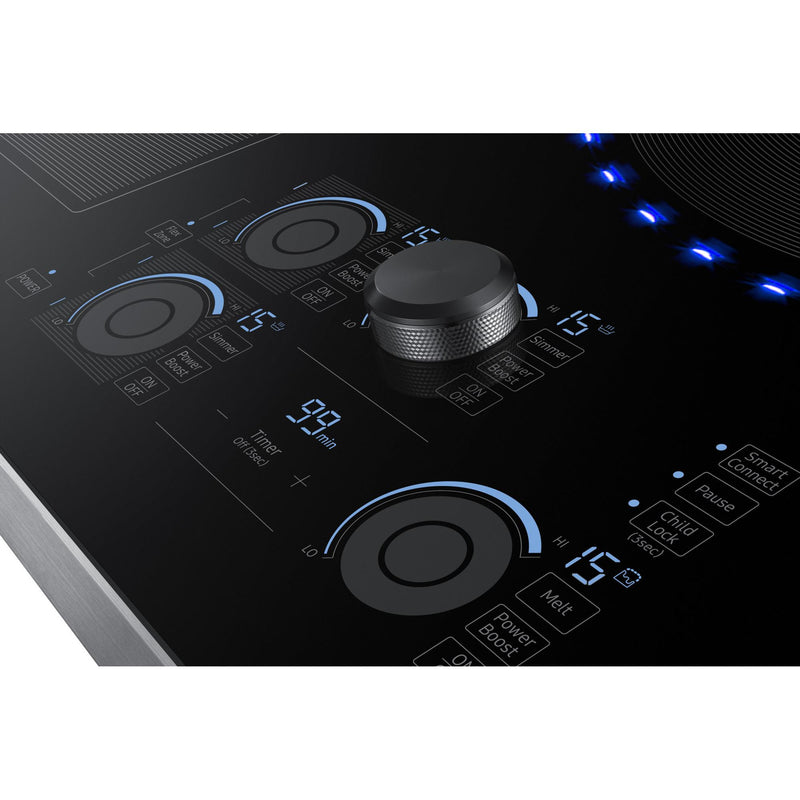

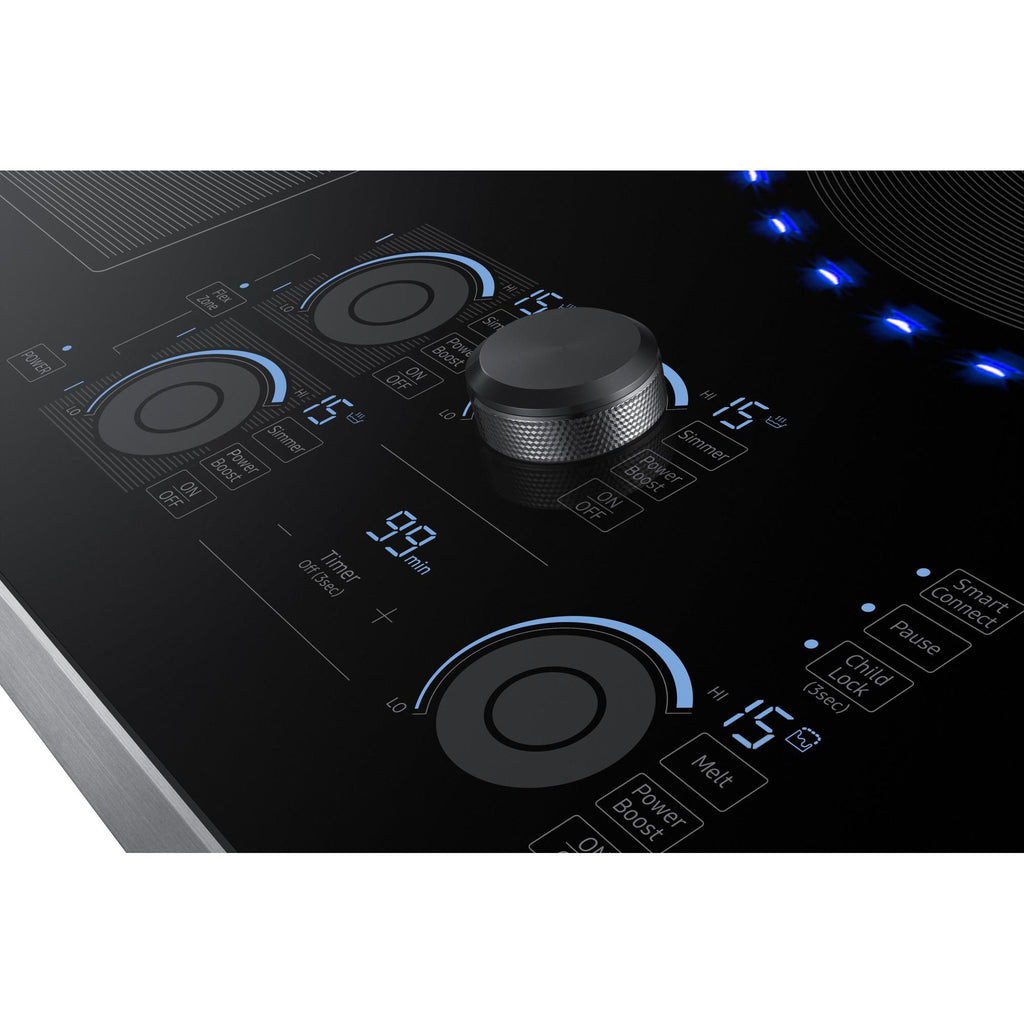

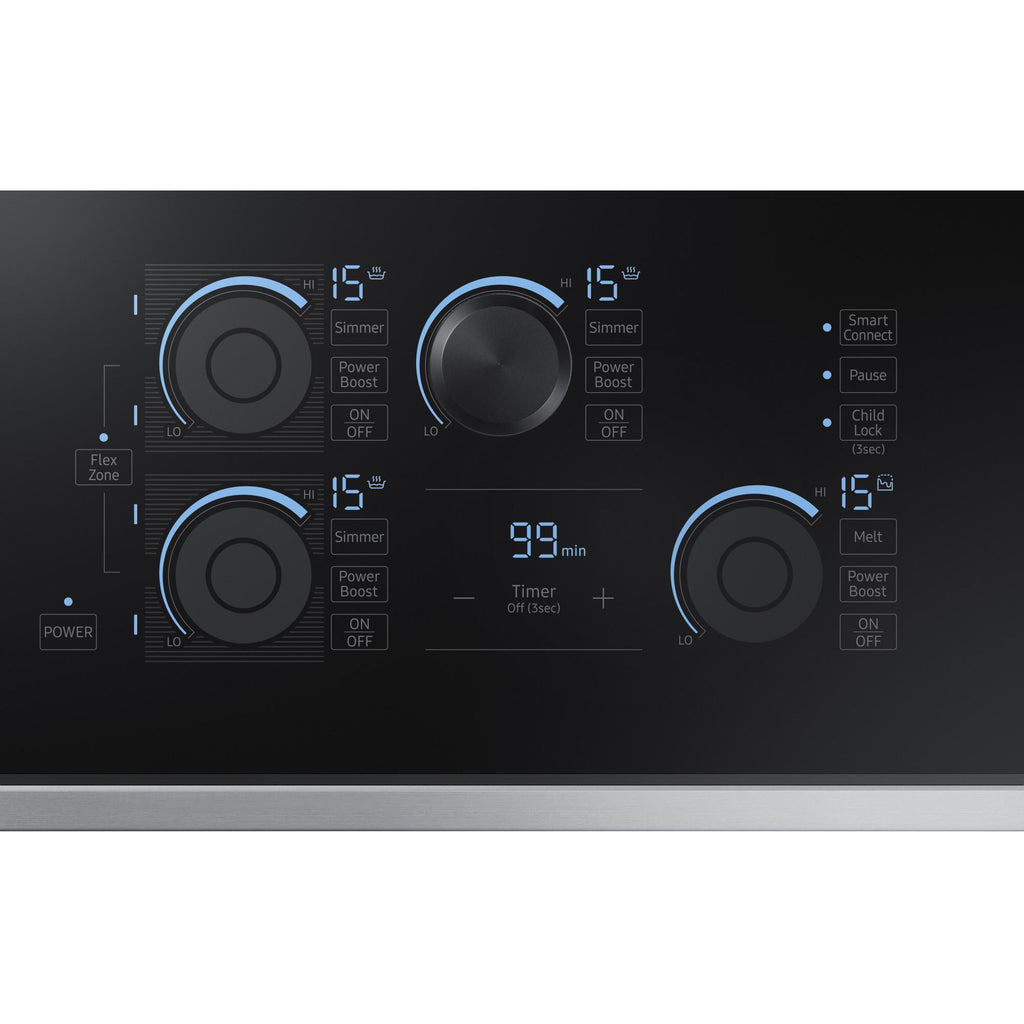

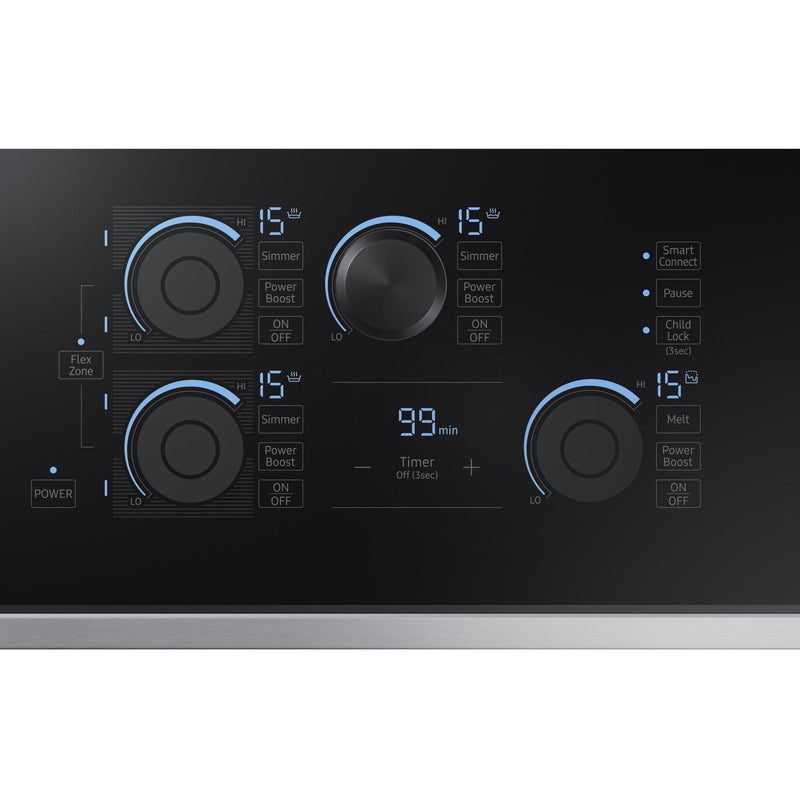

DIGITAL-ANALOG CONTROLS
The ultimate interface, choose between a removable magnetic analog-knob or digital touch controls.

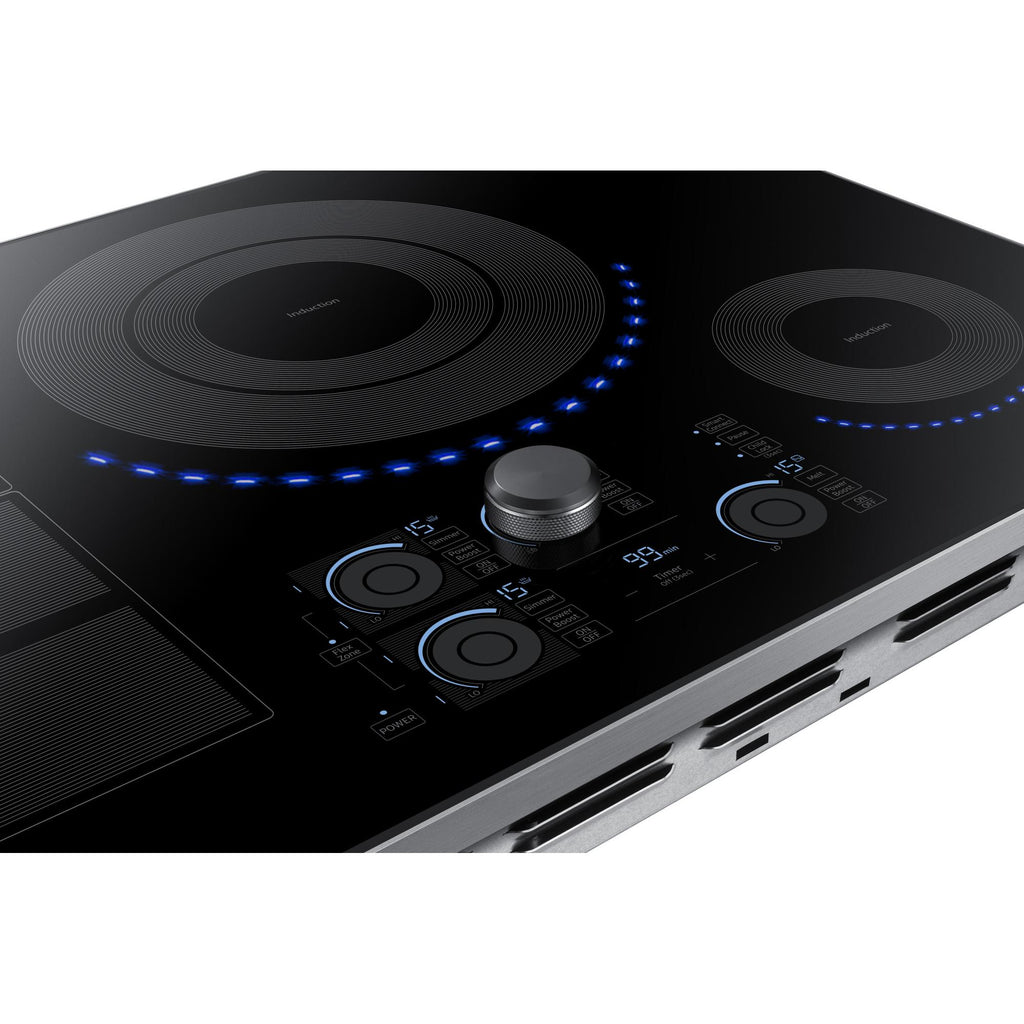

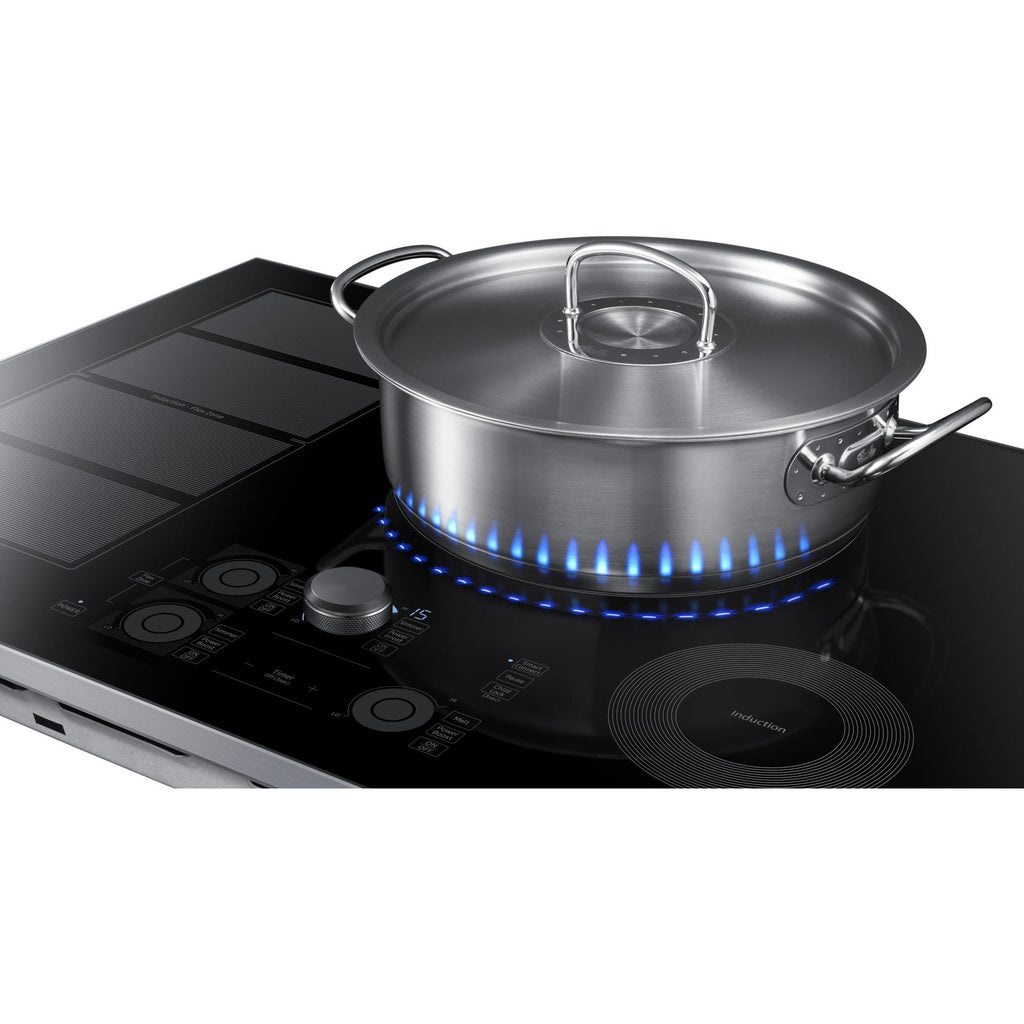

VIRTUAL FLAME™ TECHNOLOGY
LED surface lights shine onto pans to give the visual of gas cooking,
with the precision of induction.
POWER BOOST
Focused heat will increase intensity on any element for faster boiling times.
WI-FI CONNECTIVITY
Monitor and control your cooktop or hood from anywhere.
BLUETOOTH CONNECTED
This cooktop can sync to the hood via Bluetooth so that you can automatically start the fans and lights when the elements are turned on.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left Front: Flex Zone Plus 1800W (Boost 2600W)
• Left Rear: Flex Zone Plus 1800W (Boost 2600W)
• Right Front: (VF_VE) 1400W (Boost 1800W)
• Center: (VF_VE) 3600W (Boost 4800W)
• Left Rear: Flex Zone Plus 1800W (Boost 2600W)
• Right Front: (VF_VE) 1400W (Boost 1800W)
• Center: (VF_VE) 3600W (Boost 4800W)
Burner/Element Size
Flex Zone: 71 1/16" x 15 3/4", 6", 7"/11"
Elements
Smoothtop
Features
Wi-Fi
Yes
Control Lock
Yes
Digital Display
Yes
Downdraft Ventilation
No
Additional Information
• Kitchen Timer
• Safety Shutoff
• Direct Access
• Quick Stop/Start/Pause Controls
• Demo Mode
• Flex Zone
• Digital-Analog Controls
• Virtual Flame™ Technology
• Power Boost
• WiFi Connectivity
• Bluetooth Connected to Hood
• 15 Power Levels plus Booster
• Simmer
• Melt Setting
• 5 Induction Elements – Including 4800W Dual Burner – 7"/11"
• 8.6kW Power
• 2-Stage Residual Heat Indicator
• Safety Shutoff
• Direct Access
• Quick Stop/Start/Pause Controls
• Demo Mode
• Flex Zone
• Digital-Analog Controls
• Virtual Flame™ Technology
• Power Boost
• WiFi Connectivity
• Bluetooth Connected to Hood
• 15 Power Levels plus Booster
• Simmer
• Melt Setting
• 5 Induction Elements – Including 4800W Dual Burner – 7"/11"
• 8.6kW Power
• 2-Stage Residual Heat Indicator
Electrical Information
Information
240v
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
2.8 inch(es) / 7.11 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
49.8 lb(s) / 22.59 kg
Additional Dimensions
• Product Dimensions & Weight (WxHxD) Outside (Max) Cooktop Dimensions: 30" x 4" x 2 11/4"
• Cooktop Cutout Dimensions: 28 3/8" x 4" x 19 3/7"
• Shipping Dimensions & Weight (WxHxD) Dimensions: 34 " x 7 5/16" x 25"
• Cooktop Cutout Dimensions: 28 3/8" x 4" x 19 3/7"
• Shipping Dimensions & Weight (WxHxD) Dimensions: 34 " x 7 5/16" x 25"
Shipping Dimensions
Weight
60.8 lb(s) / 27.58 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
887276183190
